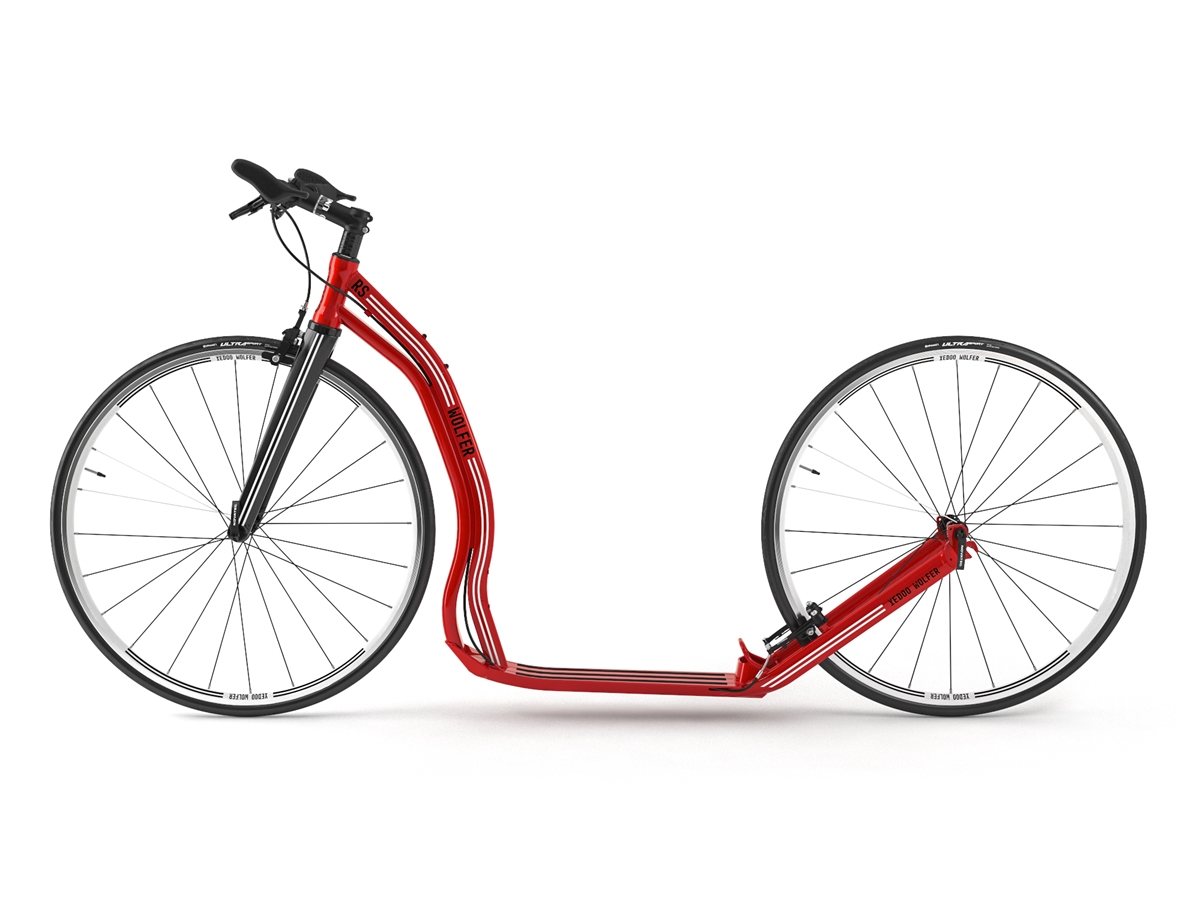

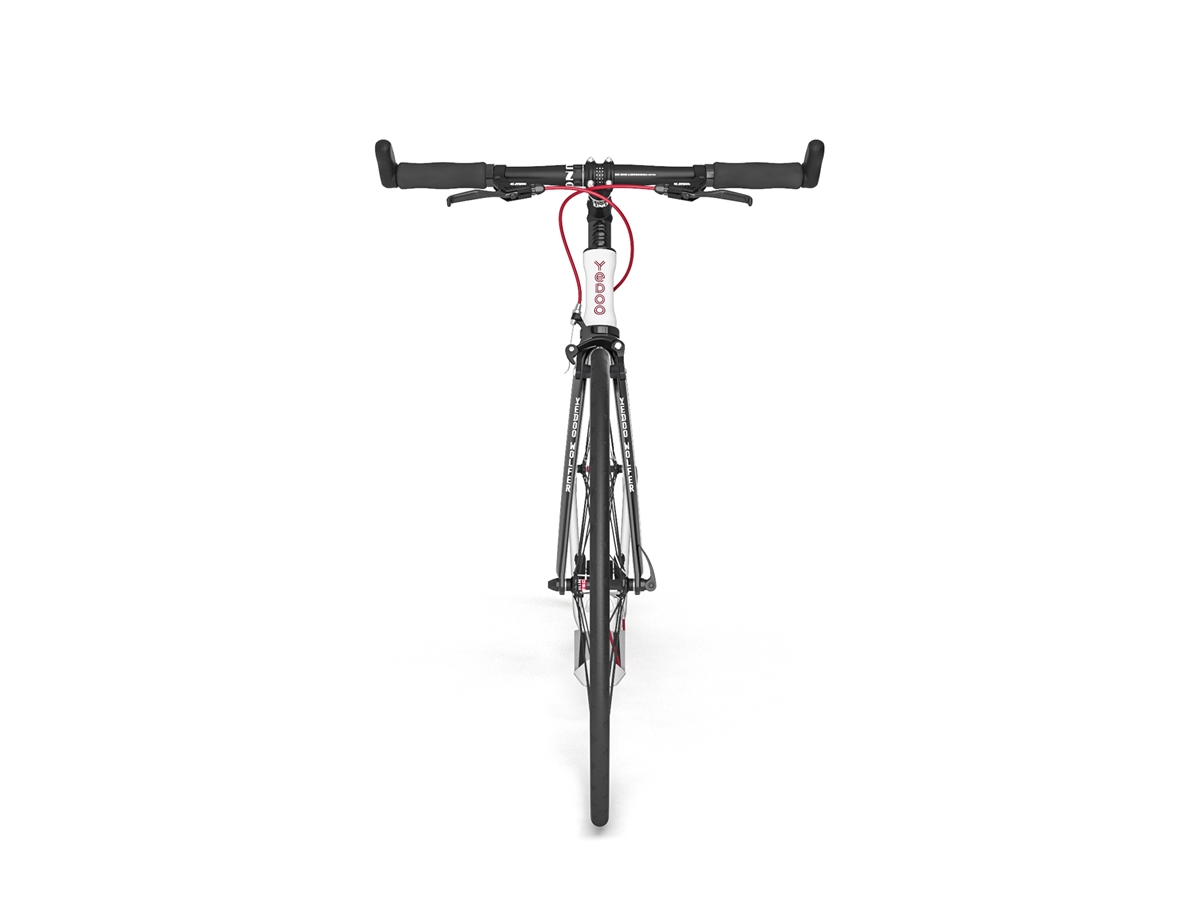

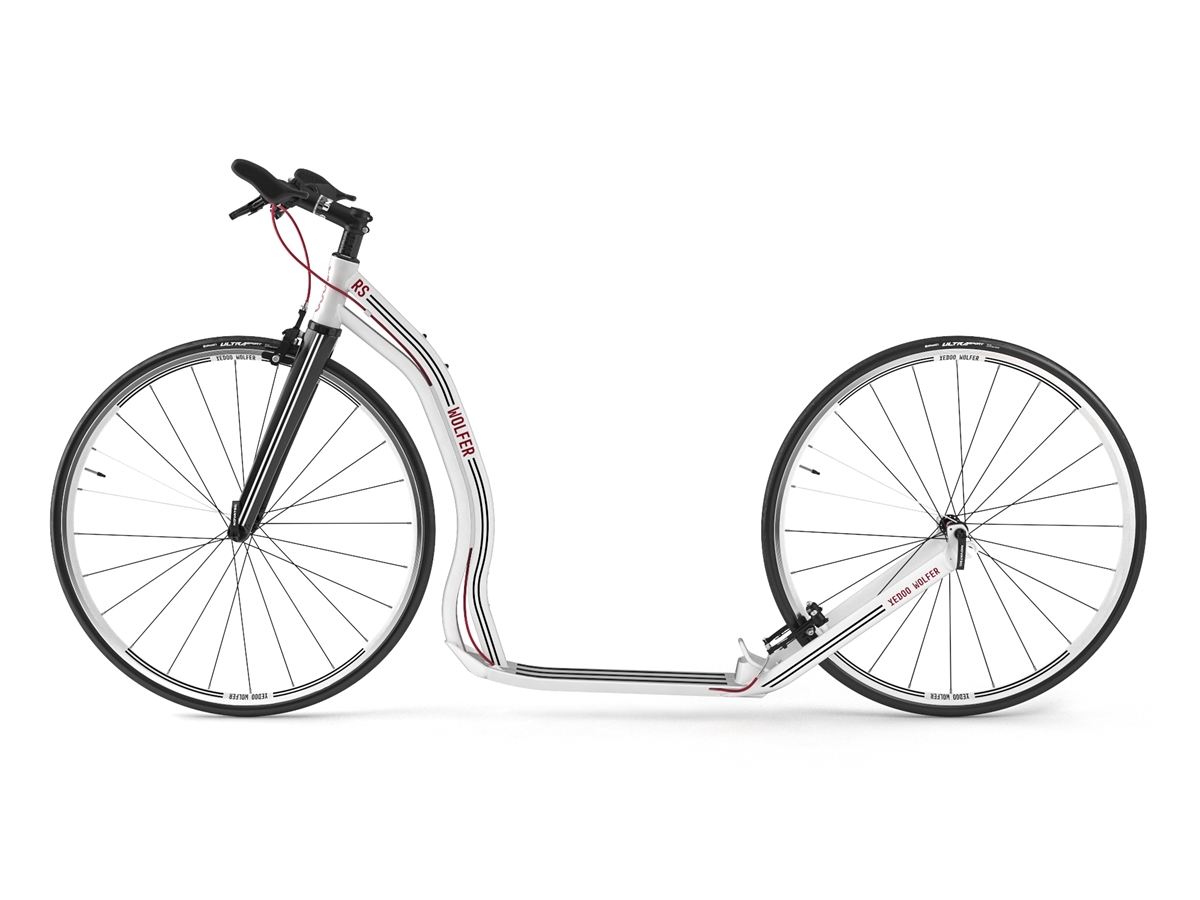

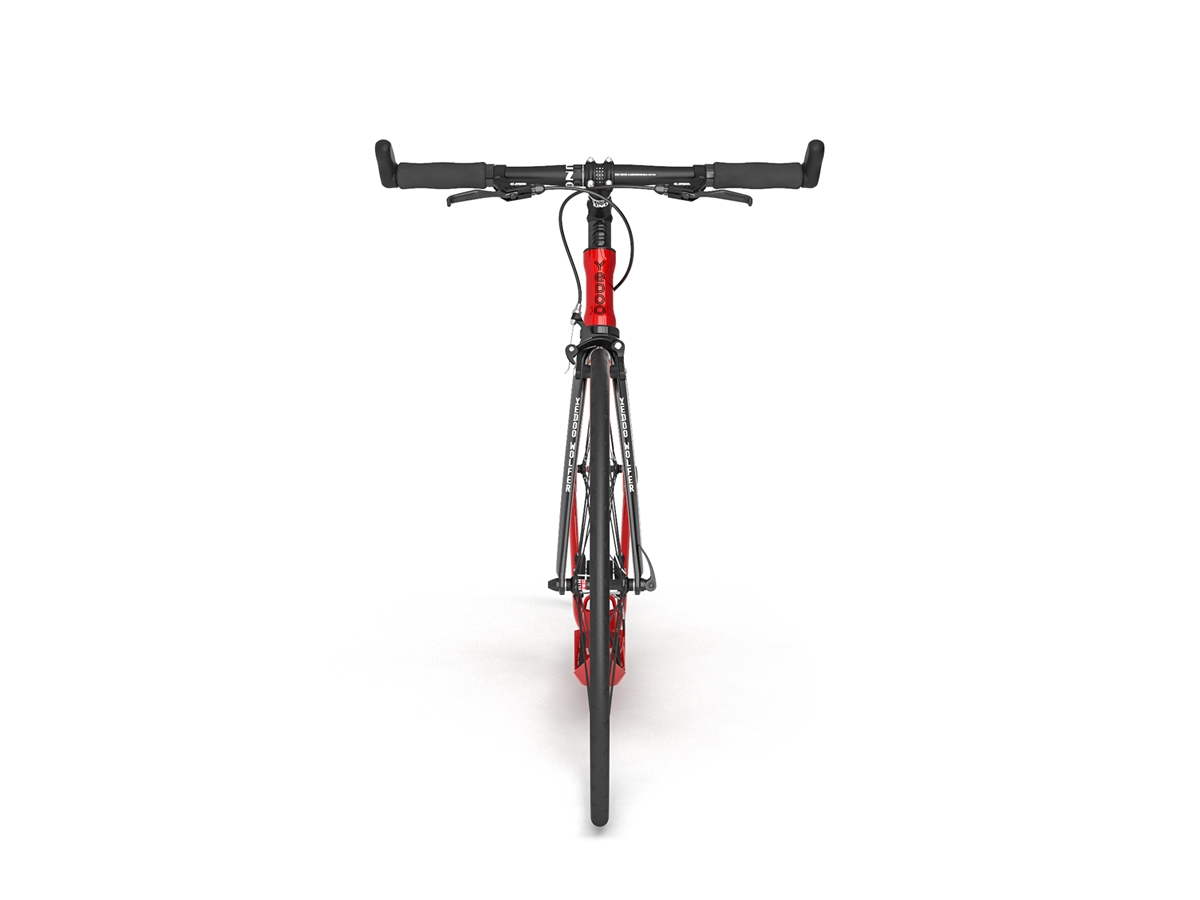

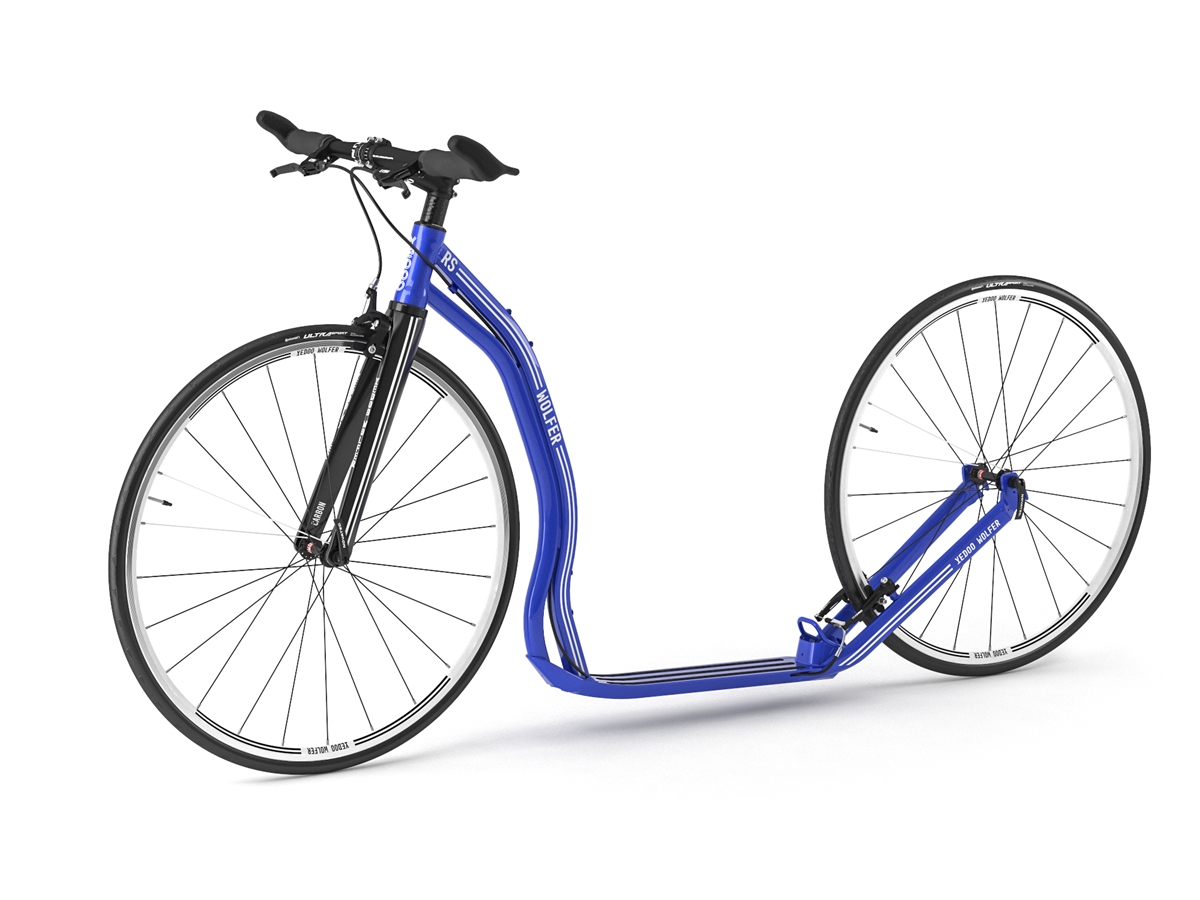

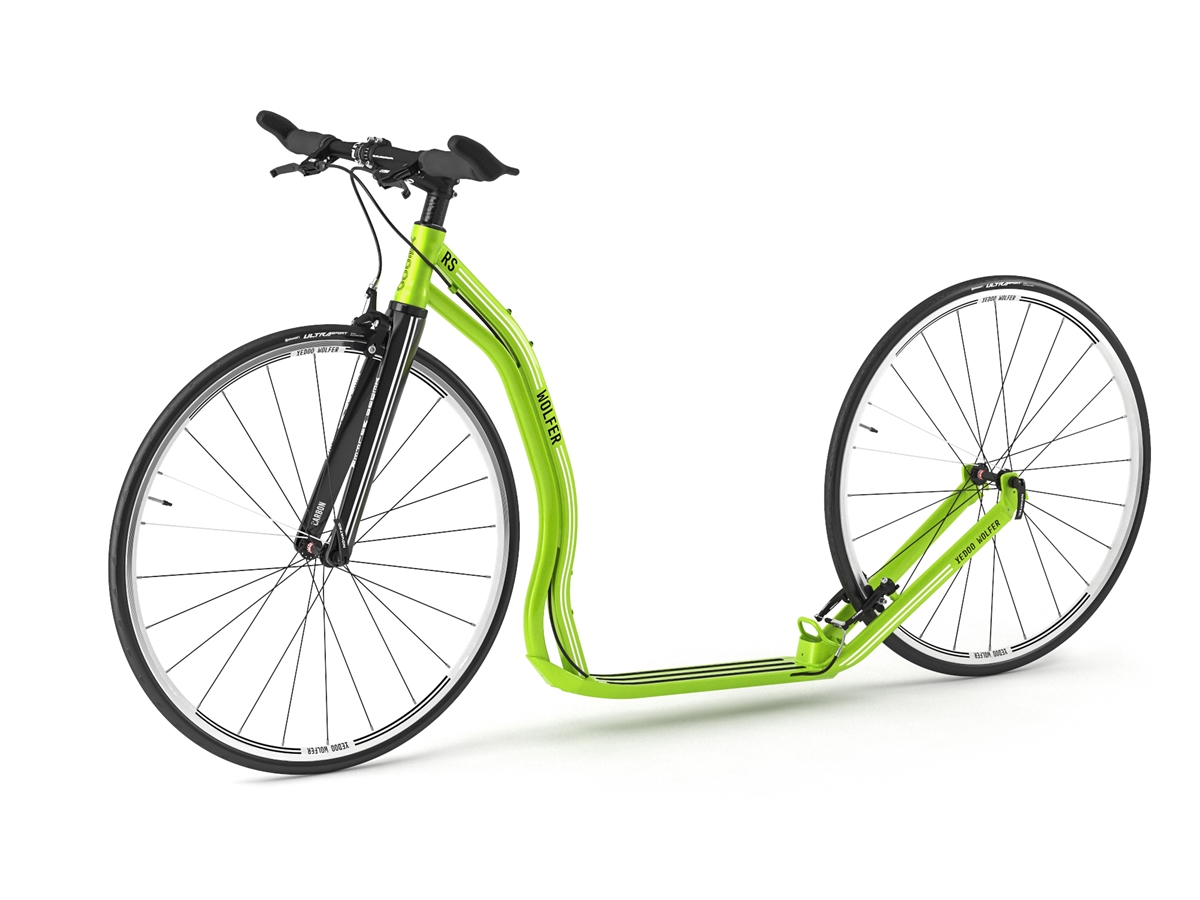

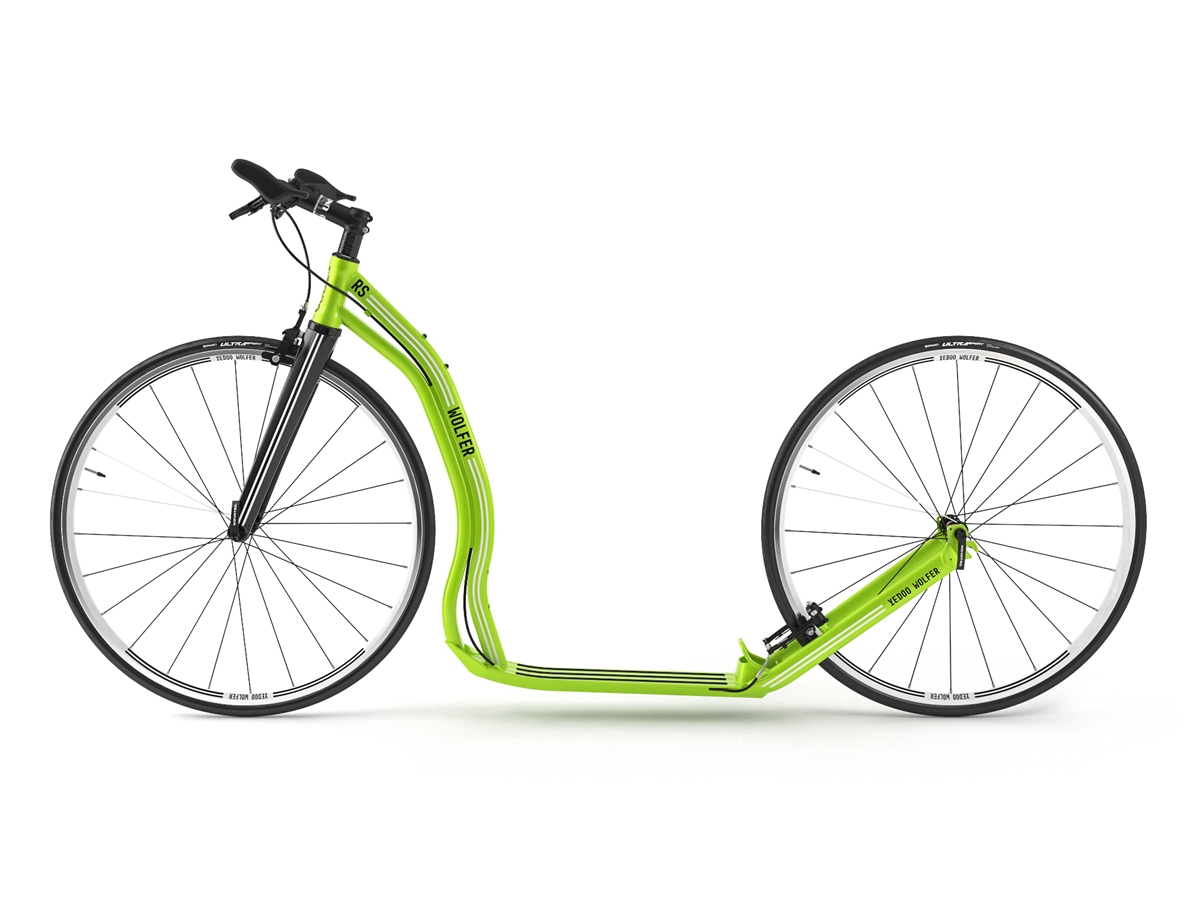

Wolfer RS
An extreme version of the top Wolfer model that continues to push forward the limits of the practicable. The ideal proportions, excellent design, construction adjustments for races and a wide range of options for personalisation will make any racer's heart flutter. Wolfer RS is a model for those, who aim at breaking records. Anything is possible from here on.
Technical data
-
Max. 120 kg
-
Min. 150 cm
-
28"/28"
-
7,9 kg
-
12 +
-
Technical details
-
Product number12721
-
Loading limit120 kg / 265 lb
-
Min. height of rider150 cm / 59 in
-
Weight (with/without kickstand)7,9 kg / 17.4 lb
-
Box size130 x 89 x 14,5 cm (51.2 x 35.0 x 5.7 in)
-
Box weight11,1 kg / 24.5 lb
-
FrameYEDOO alloy II.
-
ForkYEDOO carbon
-
StemUNO alloy 3D oversize
-
HandlebarUNO alloy DB oversize
-
GripsXHH foam V3
-
Bar endsPROMAX / TRANZ-X ergo
-
HeadsetNECO alloy 1 1/8" semi/Tapered AHEAD
-
Brake leversTEKTRO Eclipse
-
Brakes (front/rear)Caliper brake TEKTRO alloy / 102mm "V" TEKTRO alloy
-
Wheels28" / 28"
-
RimsHJC alloy double wall + CNC milled braking surface
-
HubsNOVATEC road
-
Hub width (front/rear)100 / 100 mm // 3.9 / 3.9 in
-
Preparation for using flat screws (front/ rear)No / No
-
BearingsIndustrial
-
Quick-release levers (front/rear)Yes / Yes
-
Tyres (front/rear)Continental Ultrasport III. 700x25C (180TPI, kevlar guard)
-
Max. inflation (front/rear)8,5 bar / 8,5 bar
-
Preparation for bottle holder2x
-
KickstandOptional
-
Reflective elementsOn the front fork
-

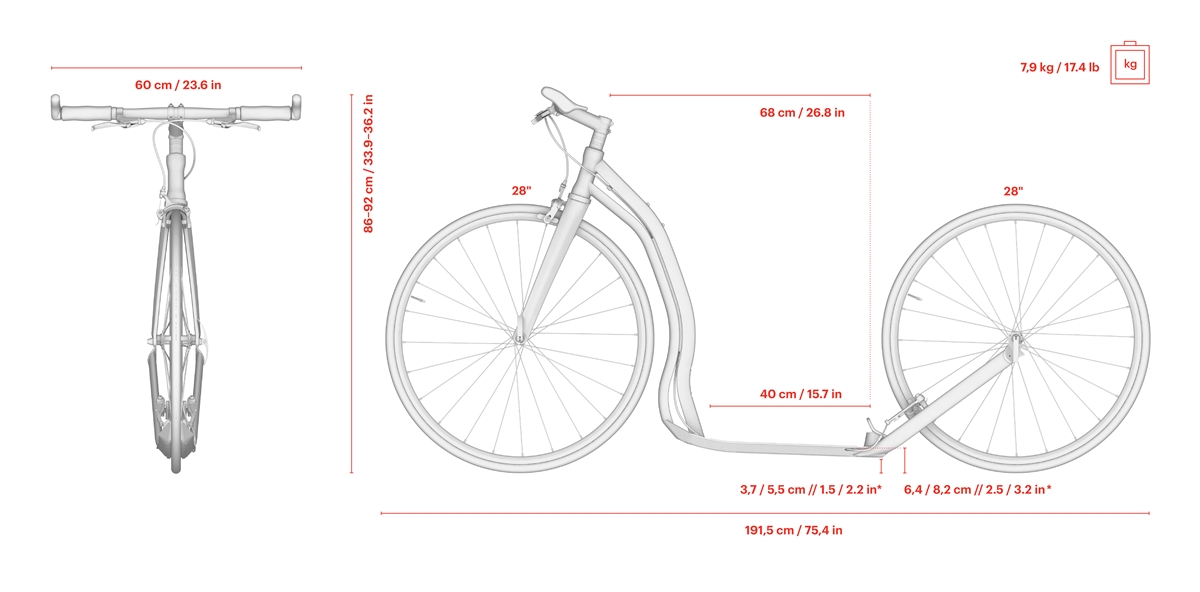

Dimensions
-
-
[1] Length191,5 cm / 75.4 in
-
[2] Footboard40 cm / 15.7 in
-
[3] Handlebar height86 - 92 cm / 33.9 - 36.2 in
-
[4] Width of handlebars60 cm / 23.6 in
-

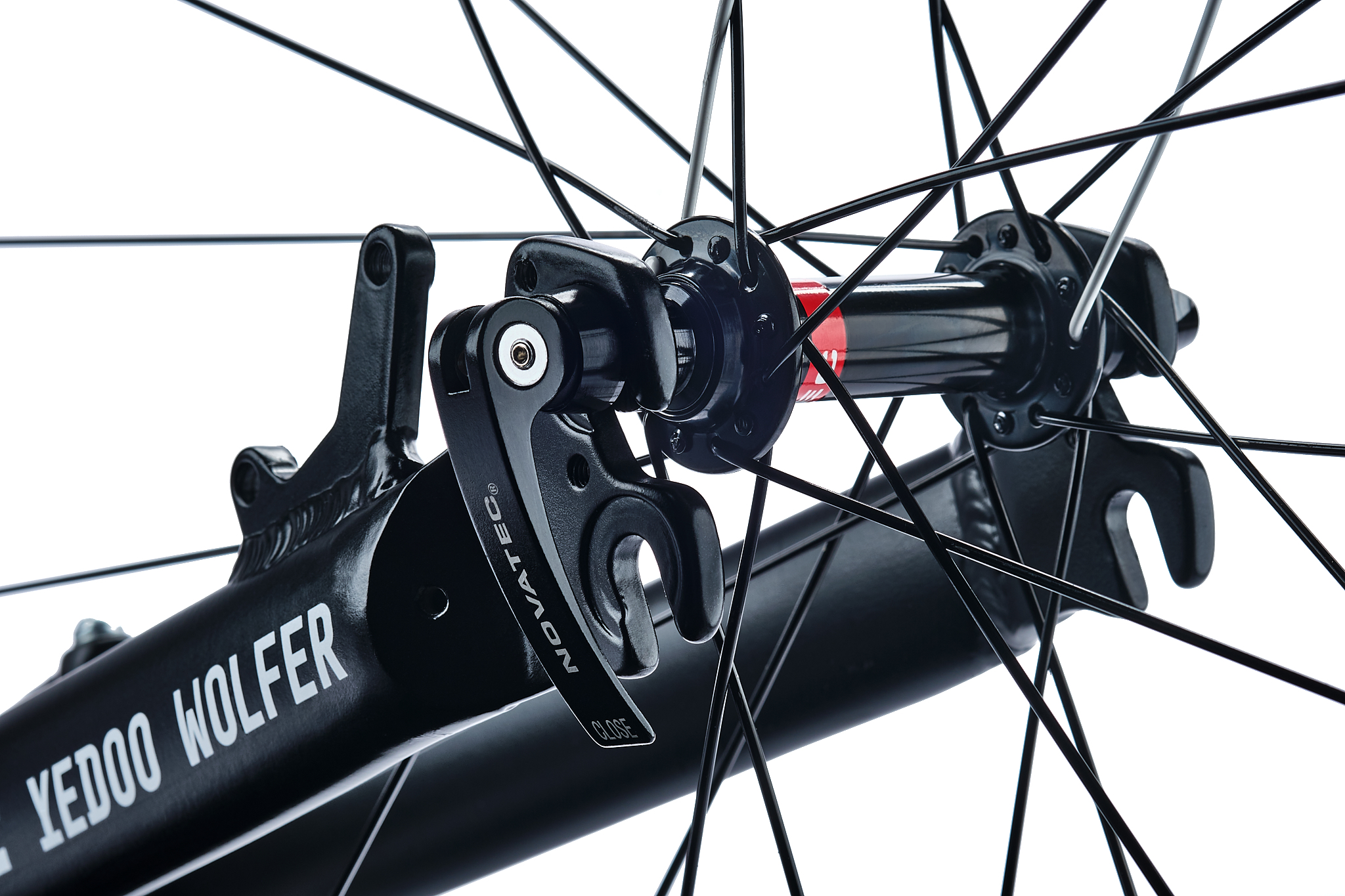

[5] Ride height (higher/lower position)*3,7 / 5,5 cm // 1.5 / 2.2 in
-
[6] Distance between footboard and ground (higher/lower position)*6,4 / 8,2 cm // 2.5 / 3.2 in
-
[7] Room for rider68 cm / 26.8 in
-
*Tolerance +-0.2 cm
-
Documents, standards and certificates
-
Manual
-
NormsČSN EN 14619
ČSN EN 14619
The regulation determines safety and functional requirements for wheel sport equipment particularly scooters aimed for users between 35kg and 100kg. The regulation examines riding properties, strength of construction, safety fixing components, shelf life and correct functionality of individual components such as brakes, bearings, rims, cases, pedals, etc. The regulation also introduces guidelines for preparation of user´s manuals, installation and treatment of these products.
-
We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More
-
Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.
-
Change of technical parameters and components reserved.
Manual_Yedoo_ALLOY_WT_web.pdf
Technical and construction features

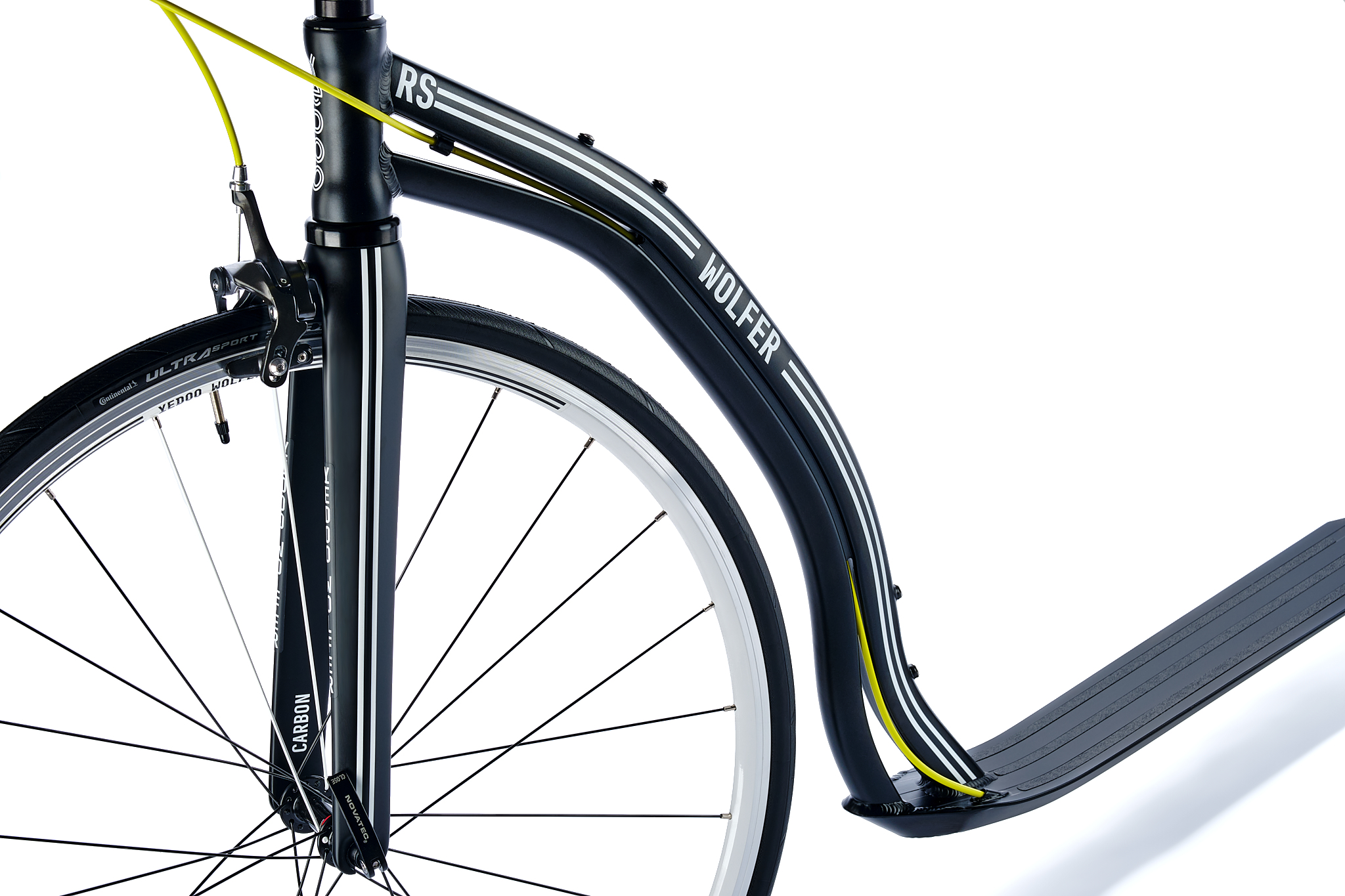

Originally designed light alloy frame
Extruded aluminium profiles resist lateral and vertical load easily. Thanks to them, the scooters are not only light, but also firm and have optimum solidity.

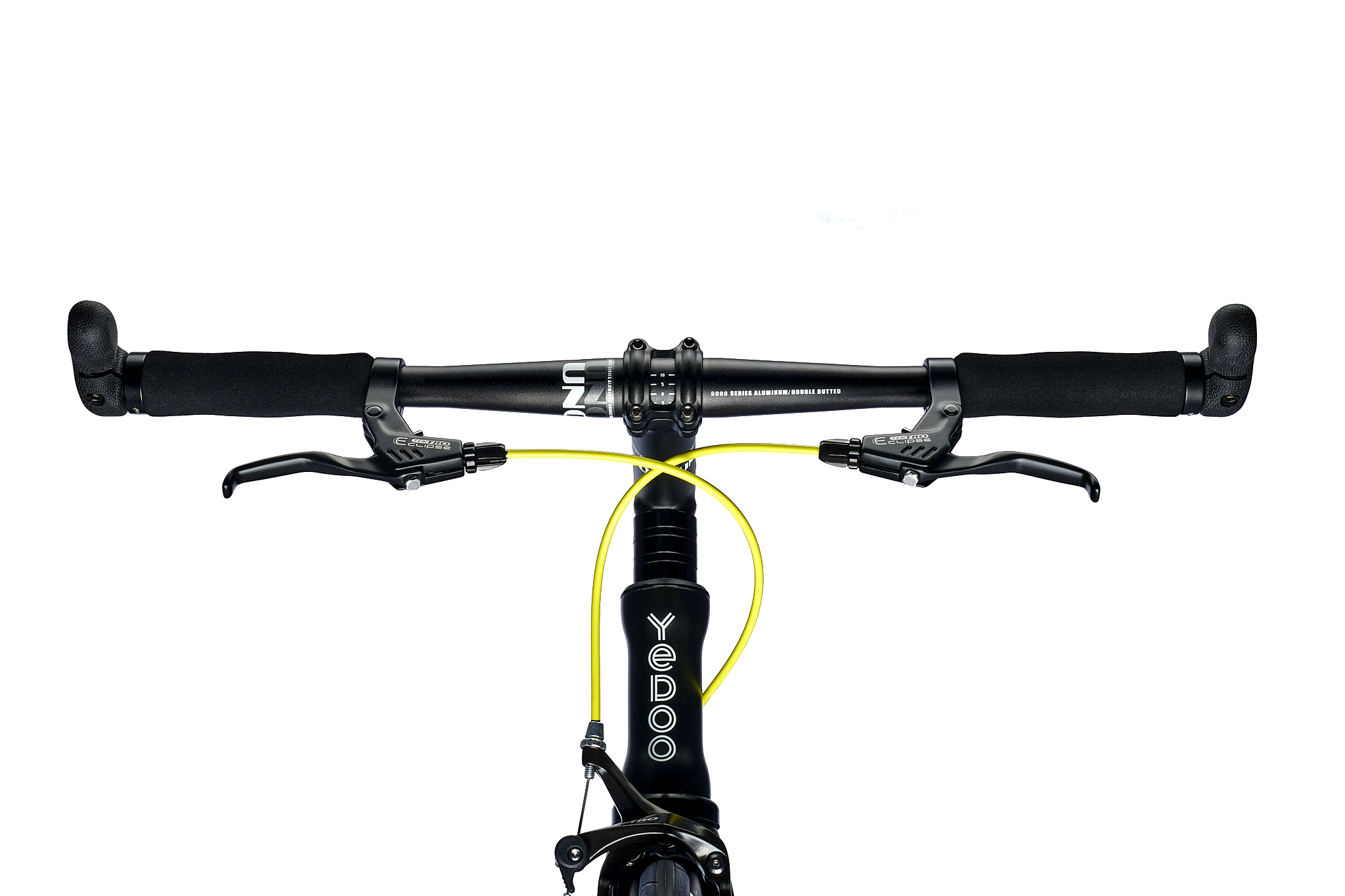

Adjustable oversize handlebars

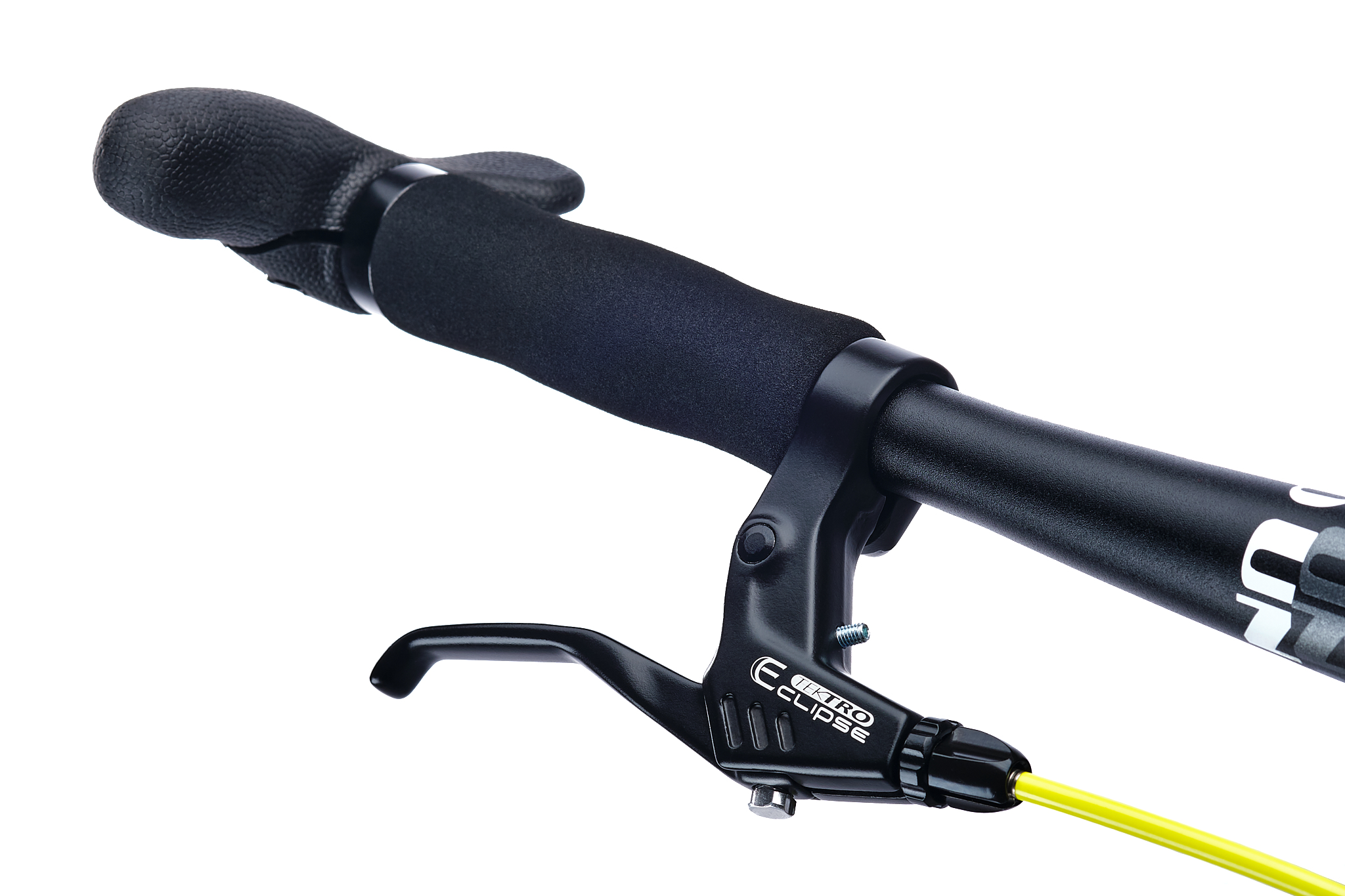

Ergonomic grips and Tektro brake levers

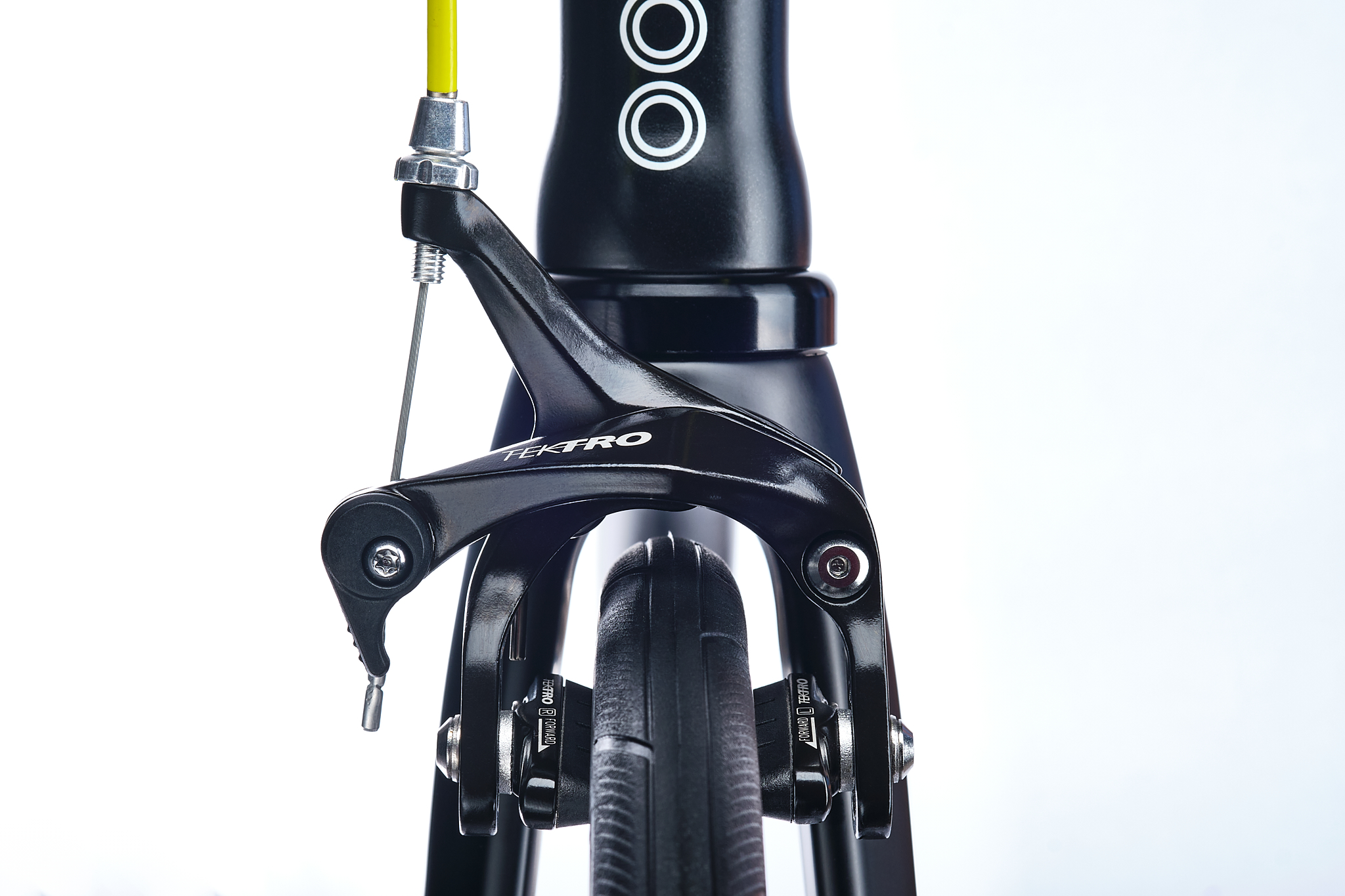

Front Caliper brake

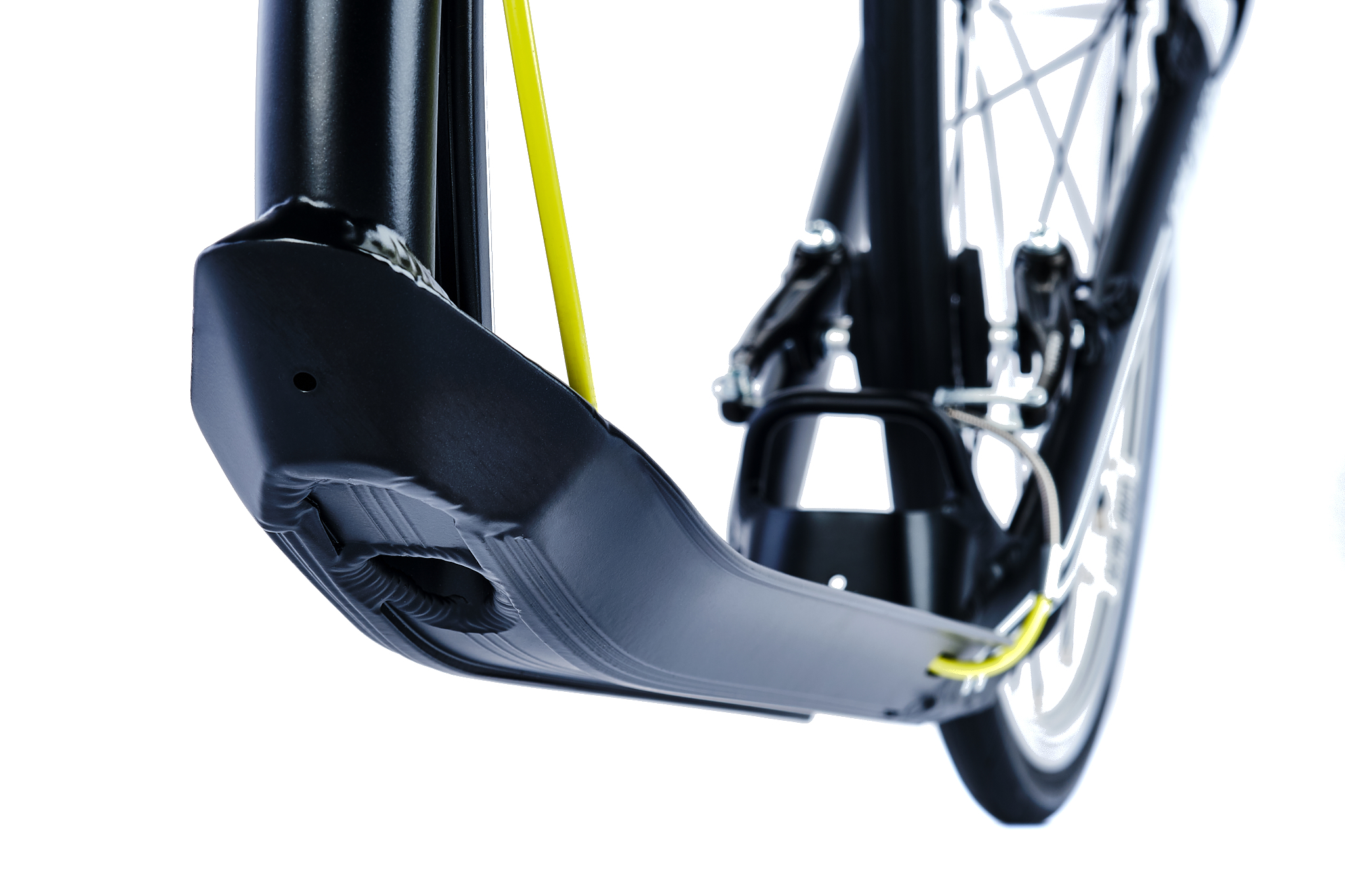

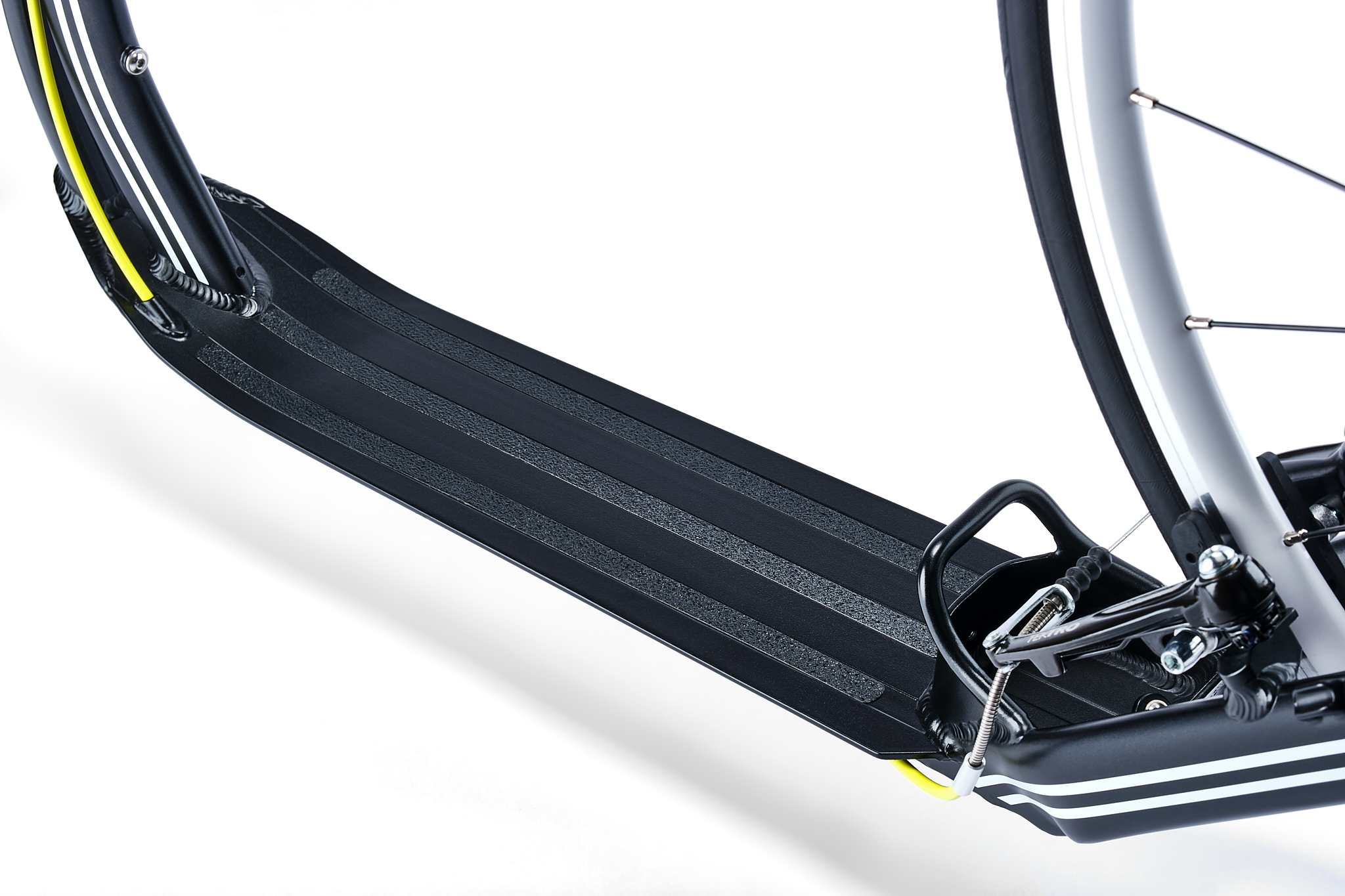

Slightly raised footboard
Footboard with anti-slip tapes

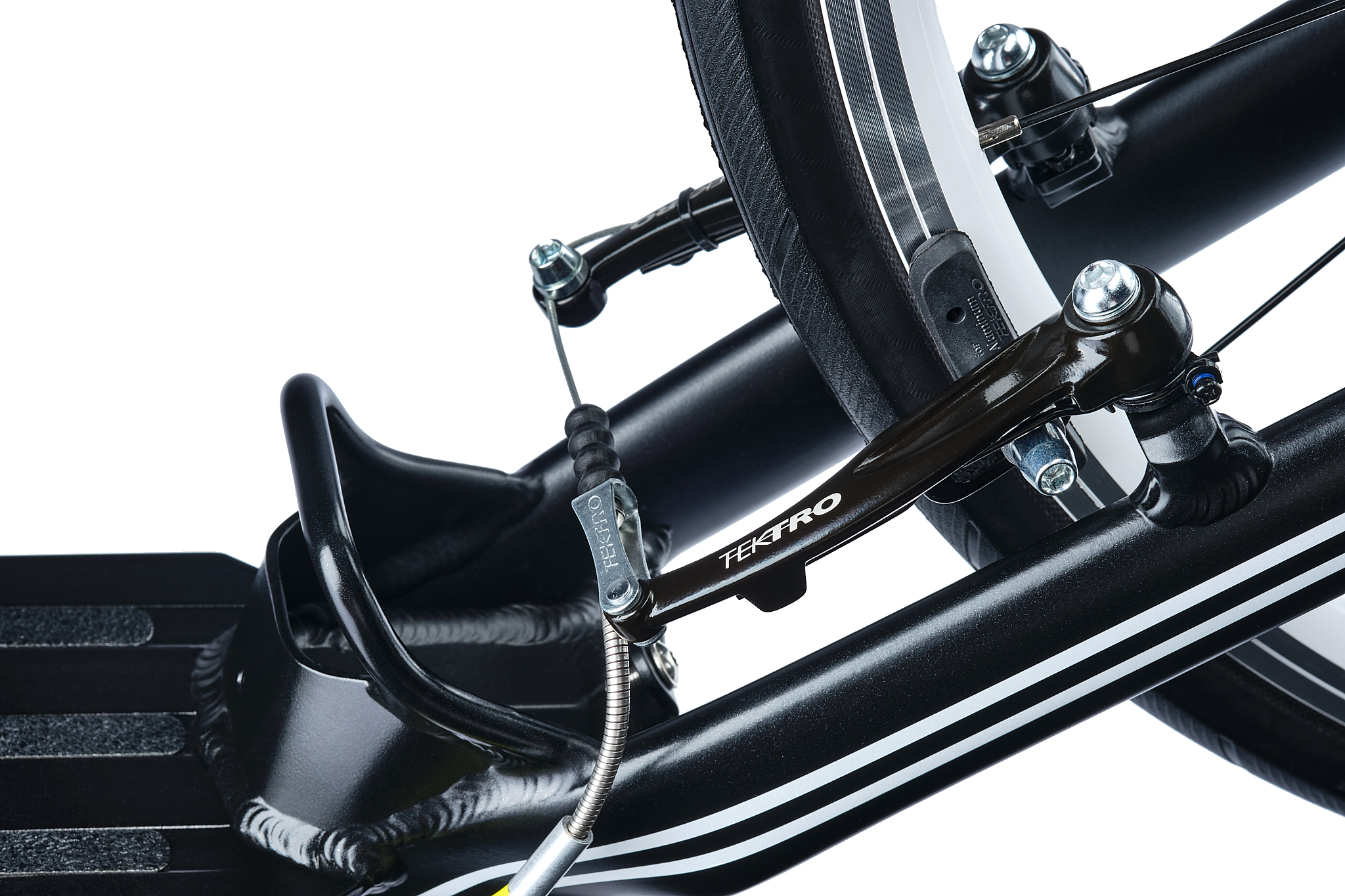

Tektro Alloy brakes and alloy double wall rims
