Yedoo Kids
Wzoom
A great buddy for any sort of adventure, secret ones or those where parents are also allowed. Wzoom will shorten the wait to children, who already need to be grown-ups so they can stay up till 9, eat pizza for breakfast and drive a bulldozer. Wzoom has grown up, and its appearance and speed put it on par with adult models. It has stayed light and easy to handle, and with the right accessories it’s ready to go on a longer ride out of town. And truth be told, with the loading capacity of 100 kilograms, it can even be ridden by an adult who would happily go to bed at 9, eat pizza for breakfast and drive a bulldozer.
Yedoo RunRun
Tokyo
Availability:
Yedoo Kids
Tidit
Technical data
-
Max. 100 kg
-
Min. 120 cm
-
16"/12"
-
7,5 kg
-
6 +
-
Technical details
-
Attention! Components may vary depending on current availability. More
-
Age6+
-
Product number12605 - Y30
-
Loading limit100 kg / 220 lb
-
Min. height of rider120 cm / 47 in
-
Weight (with/without kickstand)7,5 / 7,3 kg // 16.5 / 16.1 lb
-
Box size90,5 x 14,5 x 54,5 cm (35.6 x 5.7 x 21.5 in)
-
Box weight9,2 kg / 20.3 in
-
FrameYEDOO Hi-ten steel
-
ForkYEDOO Hi-ten steel
-
StemYEDOO Hi-ten steel 22,2/25,4
-
HandlebarYEDOO Hi-ten steel
-
GripsMolded handles with wider endings, Yedoo
-
HeadsetNECO steel 1" threaded
-
Brake levers2x TEKTRO JL510-RS alloy
-
Brakes (front/rear)2x "V" TEKTRO alloy
-
Wheels16" / 12"
-
RimsHJC alloy
-
HubsJOYTECH steel
-
Hub width (front/rear)74 / 74 mm // 2.9 / 2.9 in
-
Preparation for using flat screws (front/ rear)No / No
-
BearingsConical
-
Quick-release levers (front/rear)No / No
-
Tyres (front/rear)KENDA / INNOVA / 16x2,25 / 12x2,25
-
Max. inflation (front/rear)4,5 bar / 5,5 bar
-
Preparation for bottle holder1x
-
KickstandYedoo central, integrated
-
Reflective elementsOn the handlebar cover and tyres (only applies to Kenda tyres)
-
NoteInnovated model with two footboard height positions
-
Dimensions
-
-
[1] Length123 cm / 48.4 in
-
[2] Footboard34 cm / 13.4 in
-
[3] Handlebar height81 - 90 cm / 31.9 - 35.4 in
-
[4] Width of handlebars56 cm / 22 in
-
[5] Ride height (higher/lower position)*4,2 / 5,8 cm // 1.7 / 2.3 in
-
[6] Distance between footboard and ground (higher/lower position)*7,3 / 8,9 cm // 2.9 / 3.5 in
-
[7] Room for rider50 cm / 19.7 in
-
*Tolerance +-0.2 cm
-
Documents, standards and certificates
-
Manual
-
NormsČSN EN 14619
ČSN EN 14619
The regulation determines safety and functional requirements for wheel sport equipment particularly scooters aimed for users between 35kg and 100kg. The regulation examines riding properties, strength of construction, safety fixing components, shelf life and correct functionality of individual components such as brakes, bearings, rims, cases, pedals, etc. The regulation also introduces guidelines for preparation of user´s manuals, installation and treatment of these products.
-
Testing authoritySZÚ, s. p.
-
-
We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More
-
Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.
-
Change of technical parameters and components reserved.
Manual_Yedoo_Kids_scooters_web.pdf
Technical and construction features

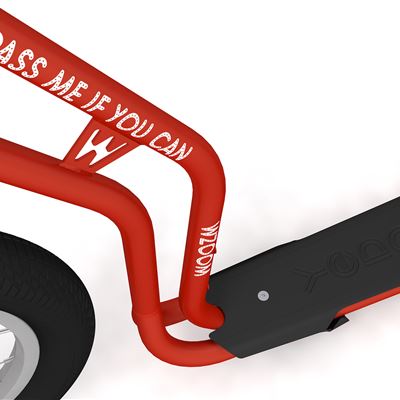

Originally designed frame
The unique dual-tube construction has enabled us to make the scooter frame as light as possible and to shorten it so that the scooters would be easy for children to handle, carry and park.
Special reinforcement
The originally designed reinforcement with the shape of the initial increases the strength of the frame and ensures optimum solidity of the scooter.
Adjustable handlebars with reflective cover
The shape and size of the handlebar are adjusted to the age of the riders.
In order to make sure no one overlooks the children on their way to school, we have added reflective print to the handlebar cover.
Widened and reinforced grips in Yedoo design and Tektro brake levers
The grips adjusted for size fit well into kids' hands, the reinforced and widened ends protect the kids' hands when riding and in case of a fall.
The junior brake levers are easy to handle, they are short-reach, operate smoothly and their distance from the handlebar is adjustable.
Prepared for a bottle holder
In order for the young travellers not to run out of juice on the way, the scooter is prepared for bottle holder installation.
Yedoo footboard
The spacious footboard provides enough space for a comfortable ride. The anti-slip surface of the deck contributes to a safe ride even in more demanding terrain and weather conditions, such as wet ground, leaves, mud.

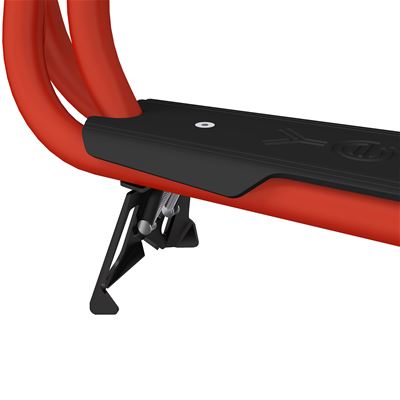

Folding stand
The stand, which is fully integrated into the construction of the frame, ensures stable parking of the scooter. Another piece of good news is that when folded, it has only minimum impact on the scooter passing through the terrain.

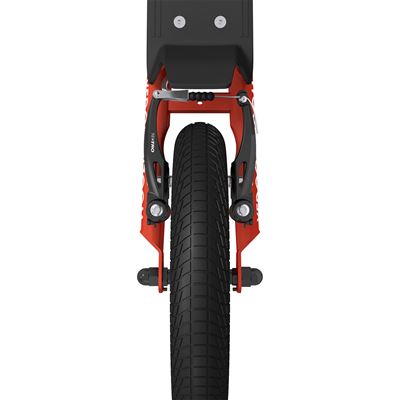

Tektro Alloy brakes and alloy rim
Quality brakes are the basis of the general safety of the scooter. They are complemented by kids' short-reach brake levers, which are easy to handle and contribute to even greater safety.
Quality aluminium rims, which are light, firm and durable, enhance the safety of the ride.
Dual position rear fork
The dual-position rear fork will enable setting up the ride height of the footboard for road and off-road.
