Yedoo Numbers

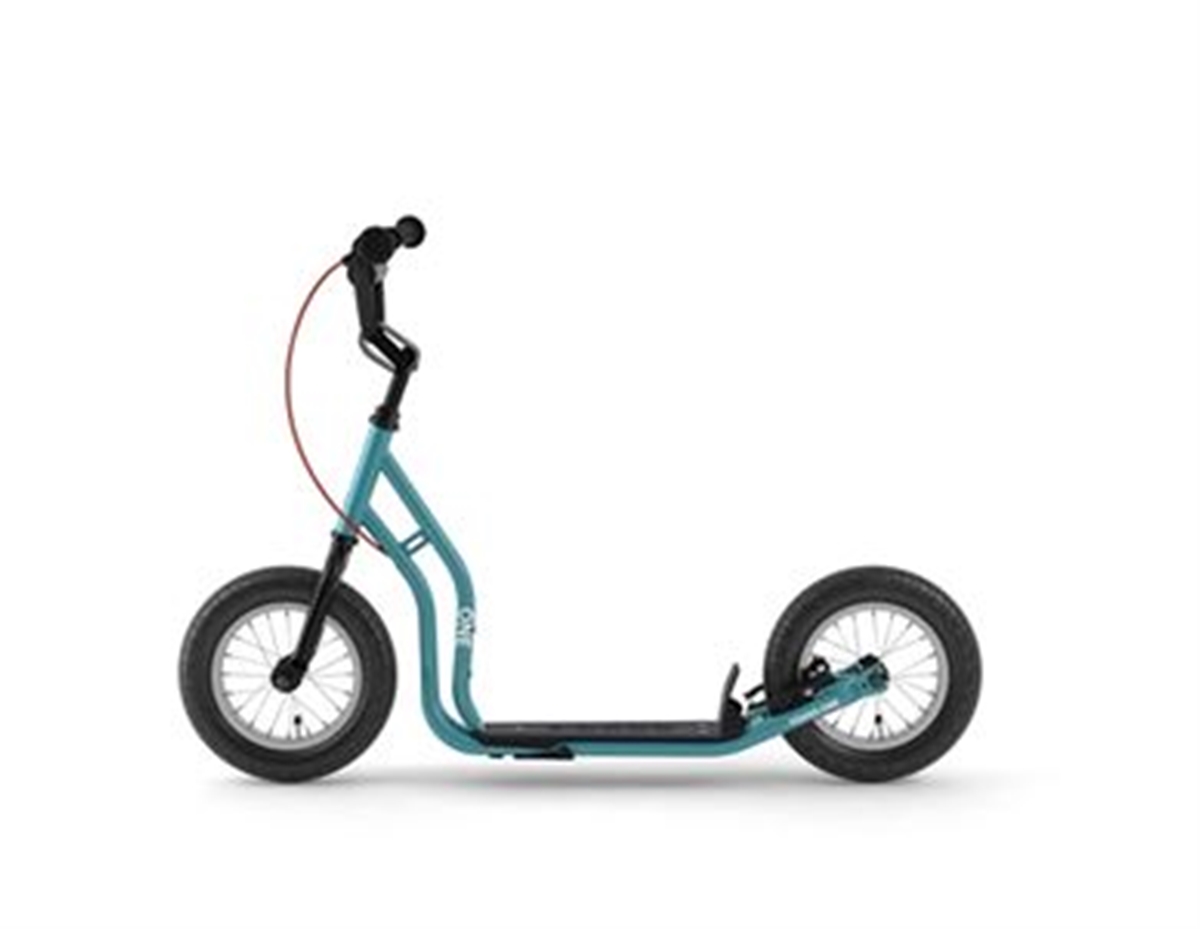

One
An absolute number one! The beginning of a beautiful friendship, with movement, speed, nature, or even with ways to outsmart getting to school. The lightest and most accessible model, which does not lack the set of safety elements, including wheels that masterfully manage even roads not maintained in winter. Come on, snail grandmas!
Yedoo Numbers
Two
Availability:
Yedoo Oops
YooToo
Technical data
-
Max. 90 kg
-
Min. 110 cm
-
12"/12"
-
6,7 kg
-
5 +
-
Technical details
-
Age5+
-
Product number12205 - Y30
-
Loading limit90 kg / 200 lb
-
Min. height of rider110 cm / 43 in
-
Weight (with/without kickstand)6,7 / 6,5 kg // 14.8 / 14.3 lb
-
Box size85 x 14,5 x 48,5 cm (33.5 x 5.7 x 19.1 in)
-
Box weight8,2 kg / 18.1 lb
-
FrameYEDOO Hi-ten steel
-
ForkYEDOO Hi-ten steel
-
StemYEDOO Hi-ten steel 22,2/25,4
-
HandlebarYEDOO Hi-ten steel
-
GripsMolded handles with wider endings, Yedoo
-
HeadsetFP steel 1" threaded
-
Brake levers1x SPARKLE
-
Brakes (front/rear)"V" TEKTRO alloy
-
Wheels12" / 12"
-
RimsHJC alloy
-
HubsJOYTECH steel
-
Hub width (front/rear)74 / 74 mm // 2.9 / 2.9 in
-
Preparation for using flat screws (front/ rear)No / No
-
BearingsConical
-
Quick-release levers (front/rear)No / No
-
Tyres (front/rear)INNOVA 12x2,25 / 12x2,25
-
Max. inflation (front/rear)4,6 bar / 4,6 bar
-
Preparation for bottle holder1x
-
KickstandYedoo central, integrated
-
Reflective elementsOn the handlebar cover
-
NoteInnovated model with two footboard height positions
-
Dimensions
-
-
[1] Length113 cm / 44.5 in
-
[2] Footboard34 cm / 13.4 in
-
[3] Handlebar height75 - 84 cm / 29.5 - 33.1 in
-
[4] Width of handlebars54 cm / 21.3 in
-
[5] Ride height (higher/lower position)*4,6 / 6,2 cm // 1.8 / 2.4 in
-
[6] Distance between footboard and ground (higher/lower position)*7,7/ 9,3 cm / 3.0 / 3.7 in
-
[7] Room for rider47 cm / 18.5 in
-
*Tolerance +-0.2 cm
-
Documents, standards and certificates
-
Manual
-
NormsČSN EN 14619
ČSN EN 14619
The regulation determines safety and functional requirements for wheel sport equipment particularly scooters aimed for users between 35kg and 100kg. The regulation examines riding properties, strength of construction, safety fixing components, shelf life and correct functionality of individual components such as brakes, bearings, rims, cases, pedals, etc. The regulation also introduces guidelines for preparation of user´s manuals, installation and treatment of these products.
ČSN EN 71-3ČSN EN 71-3
The regulation ČSN EN 71-3 considers the safety of toys designated for children under the age of 14. It focuses on the migration of elements – in other words, it is testing if dangerous elements such as antimony, arsenic, barium, cadmium, chromium, lead, mercury, selenium and esters of phtalate acid, so called phthalates, used as softeners in plastics production, do not enter the child´s body by direct contact with their skin, perspiration or saliva. The objects of investigation are primarily rim and frame paints, handles of handlebars, the surface of the seat and pedals, etc. The update of this norm from 2013 extends the number of observed elements and adjusts its limit values considering new scientific findings and technological development of toys in production and manufacture.
-
Testing authoritySZÚ, s. p.TZÚS, s. p.
-
-
We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More
-
Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.
-
Change of technical parameters and components reserved.
Manual_Yedoo_Kids_scooters_web.pdf
Technical and construction features
Originally designed frame
The unique dual-tube construction has enabled us to make the scooter frame as light as possible and to shorten it so that the scooters would be easy for children to handle, carry and park.
Adjustable handlebars with reflective cover
The shape and size of the handlebar are adjusted to the age of the riders.
Reflective elements on the handlebar cover ensure that no one fails to see the children.
Widened and reinforced grips in Yedoo design and Tektro brake levers
The grips adjusted for size fit well into kids' hands, the reinforced and widened ends protect the kids' hands when riding and in case of a fall.
The junior brake levers are easy to handle, they are short-reach, operate smoothly and their distance from the handlebar is adjustable.
Yedoo footboard
The spacious footboard provides enough space for a comfortable ride. The anti-slip surface of the deck contributes to a safe ride even in more demanding terrain and weather conditions, such as wet ground, leaves, mud.
Folding stand
The stand, which is fully integrated into the construction of the frame, ensures stable parking of the scooter. Another piece of good news is that when folded, it has only minimum impact on the scooter passing through the terrain.
Tektro Alloy brakes and alloy rim
Quality brakes are the basis of the general safety of the scooter. They are complemented by kids' short-reach brake levers, which are easy to handle and contribute to even greater safety.
Quality aluminium rims, which are light, firm and durable, enhance the safety of the ride.
Dual position rear fork
The dual-position rear fork will enable setting up the ride height of the footboard for road and off-road.
