Scooters for Adults / Yedoo Numbers

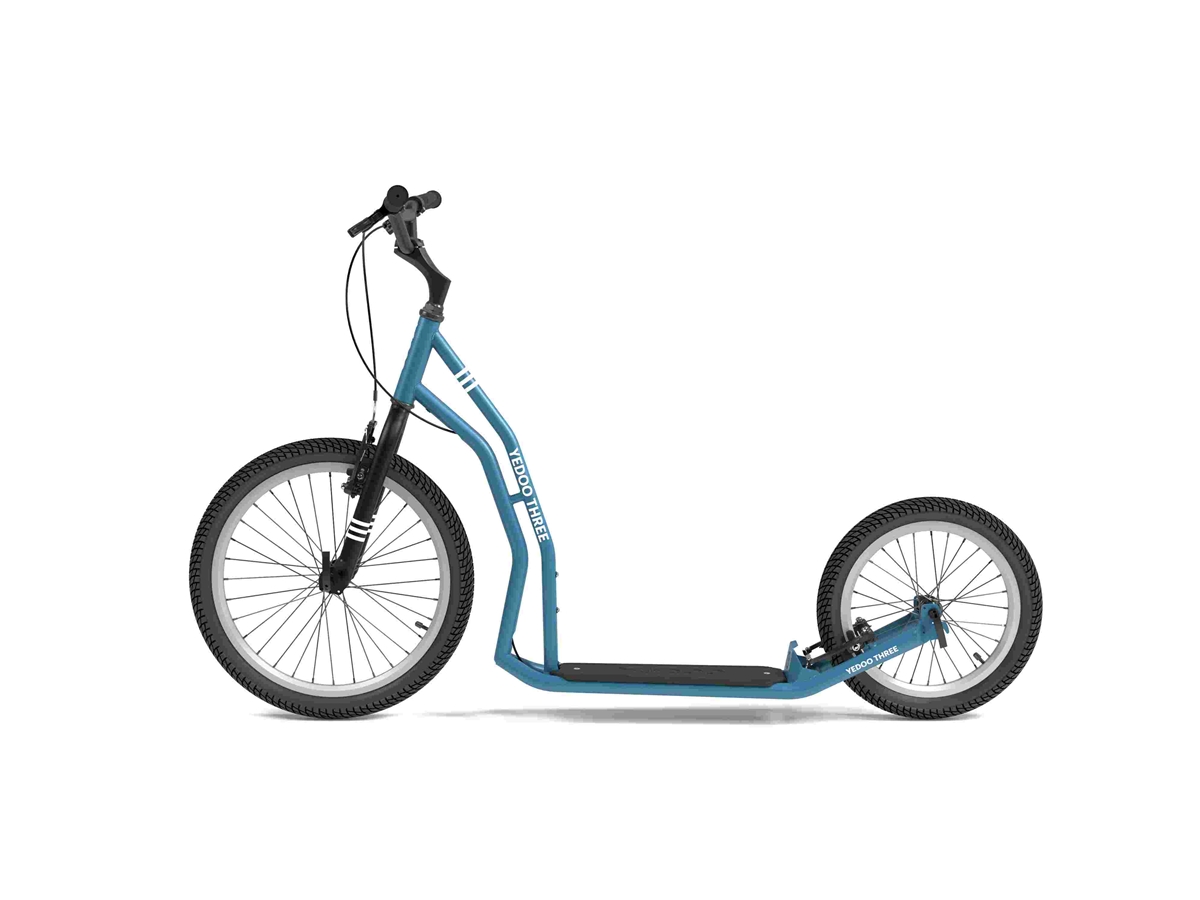

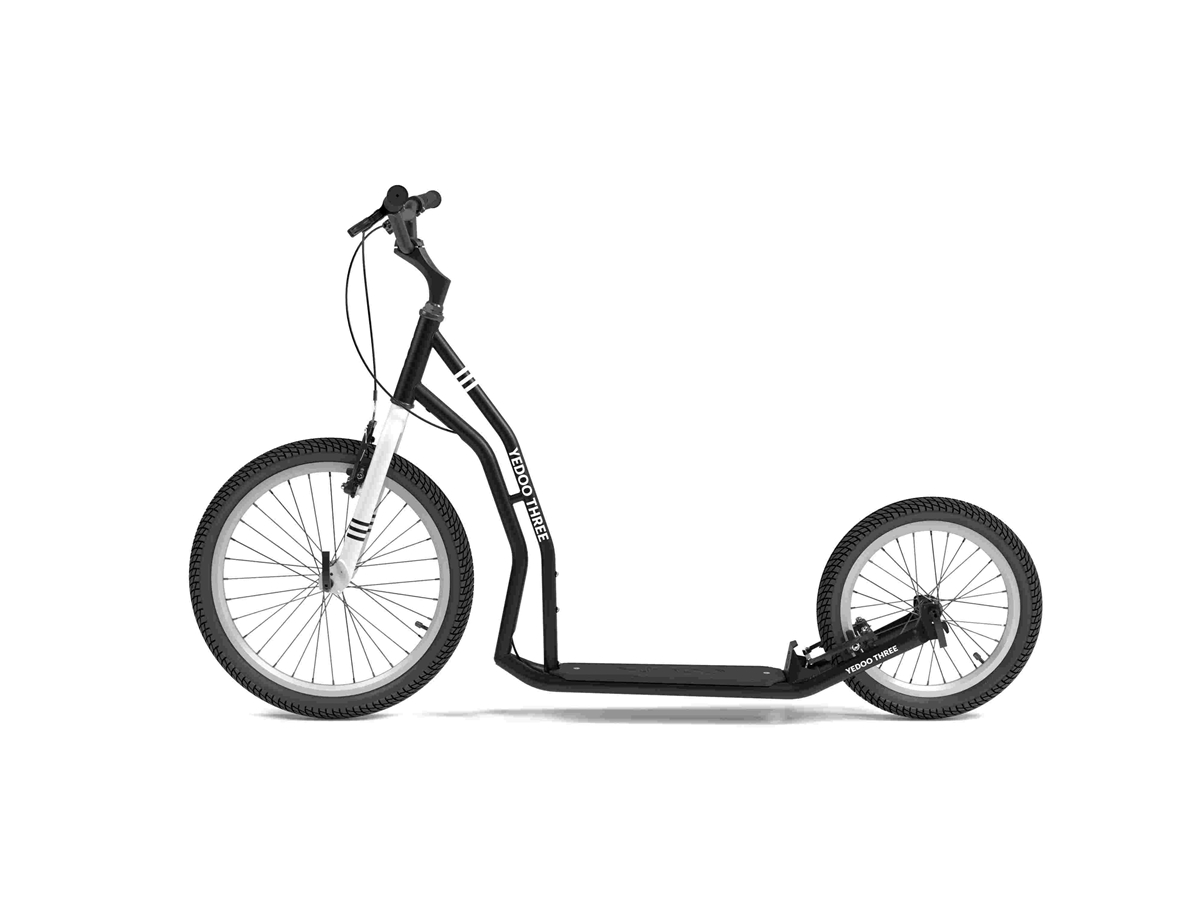

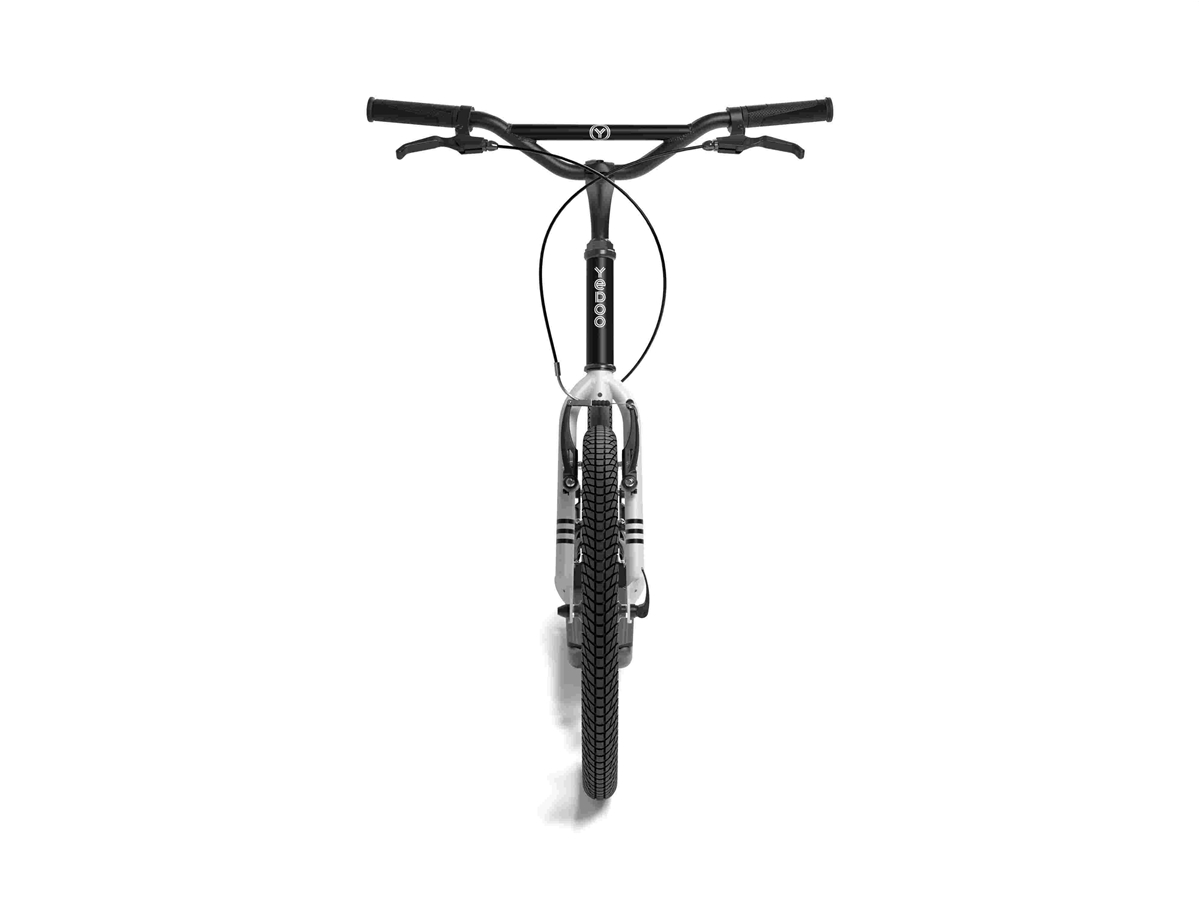

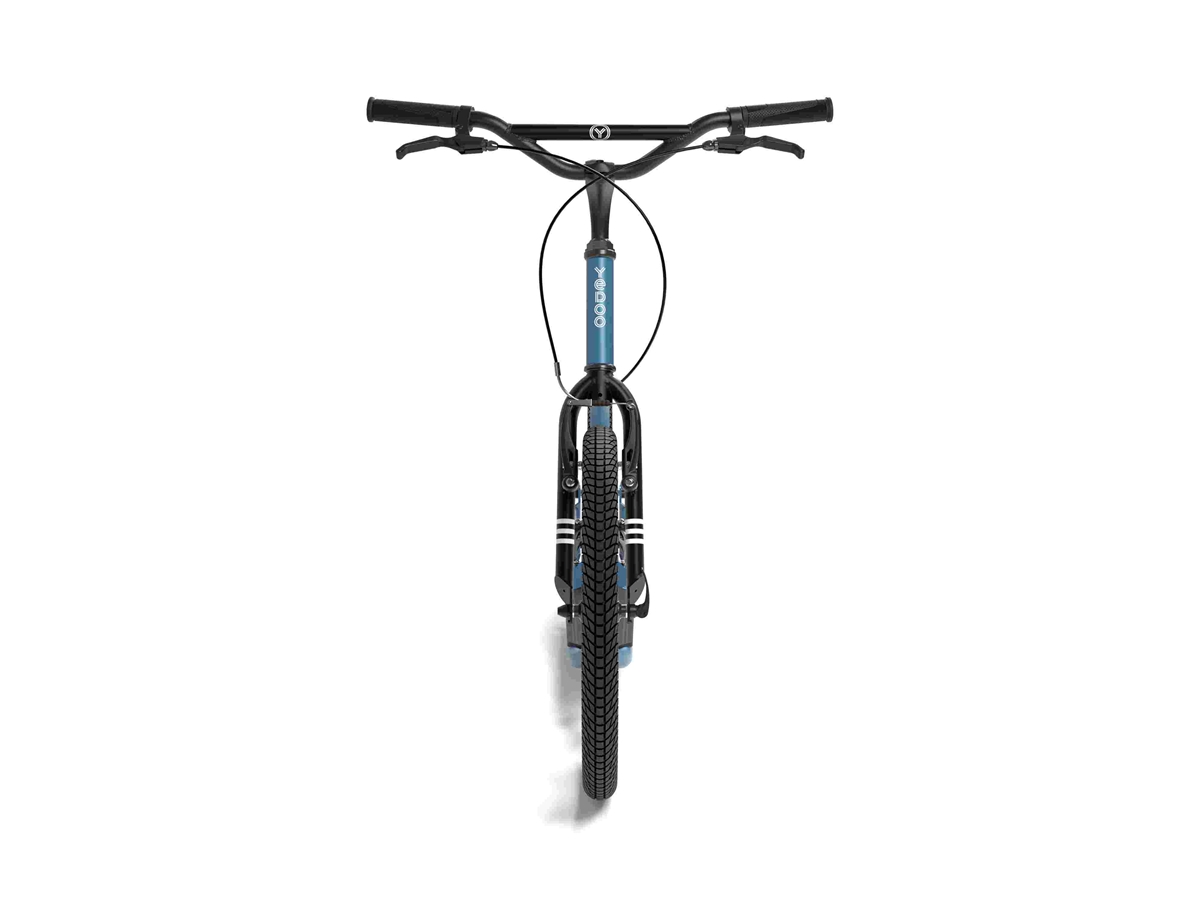

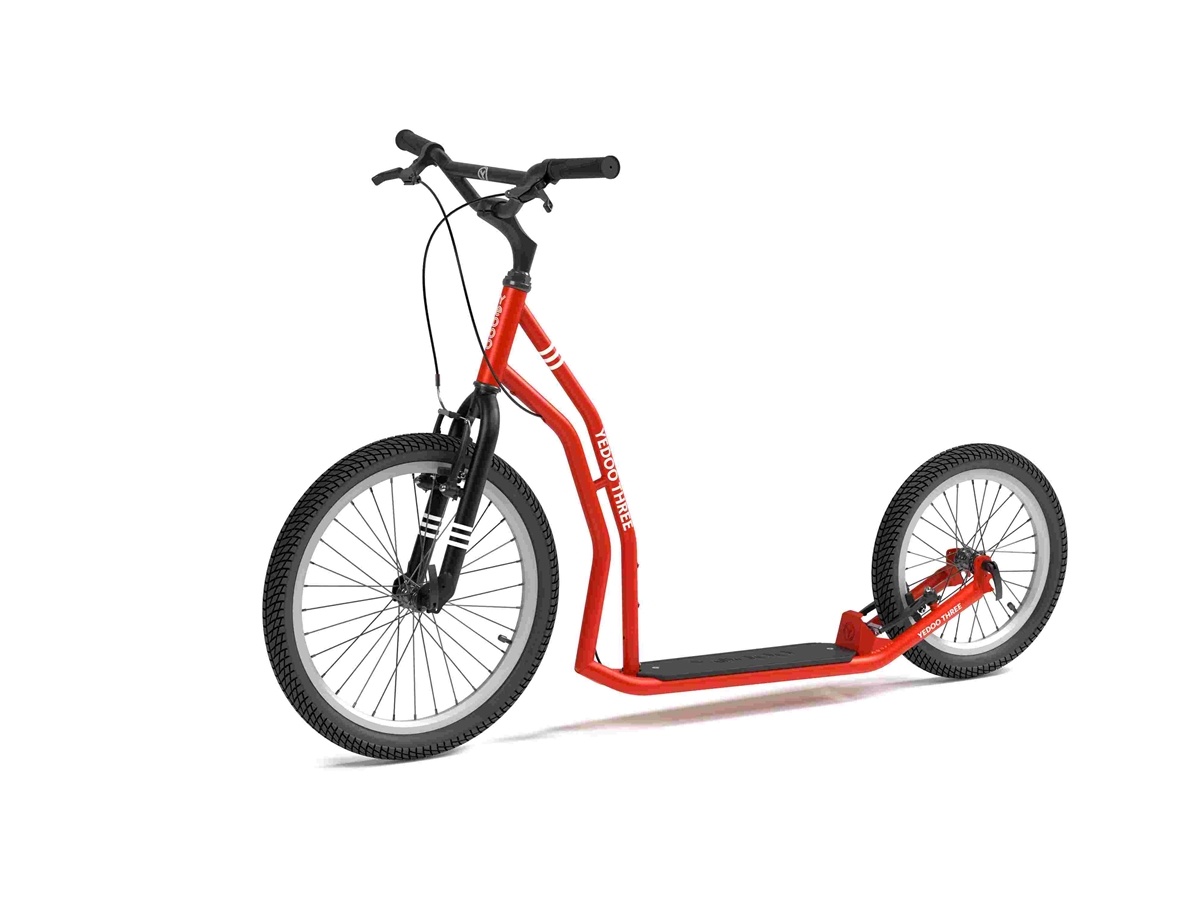

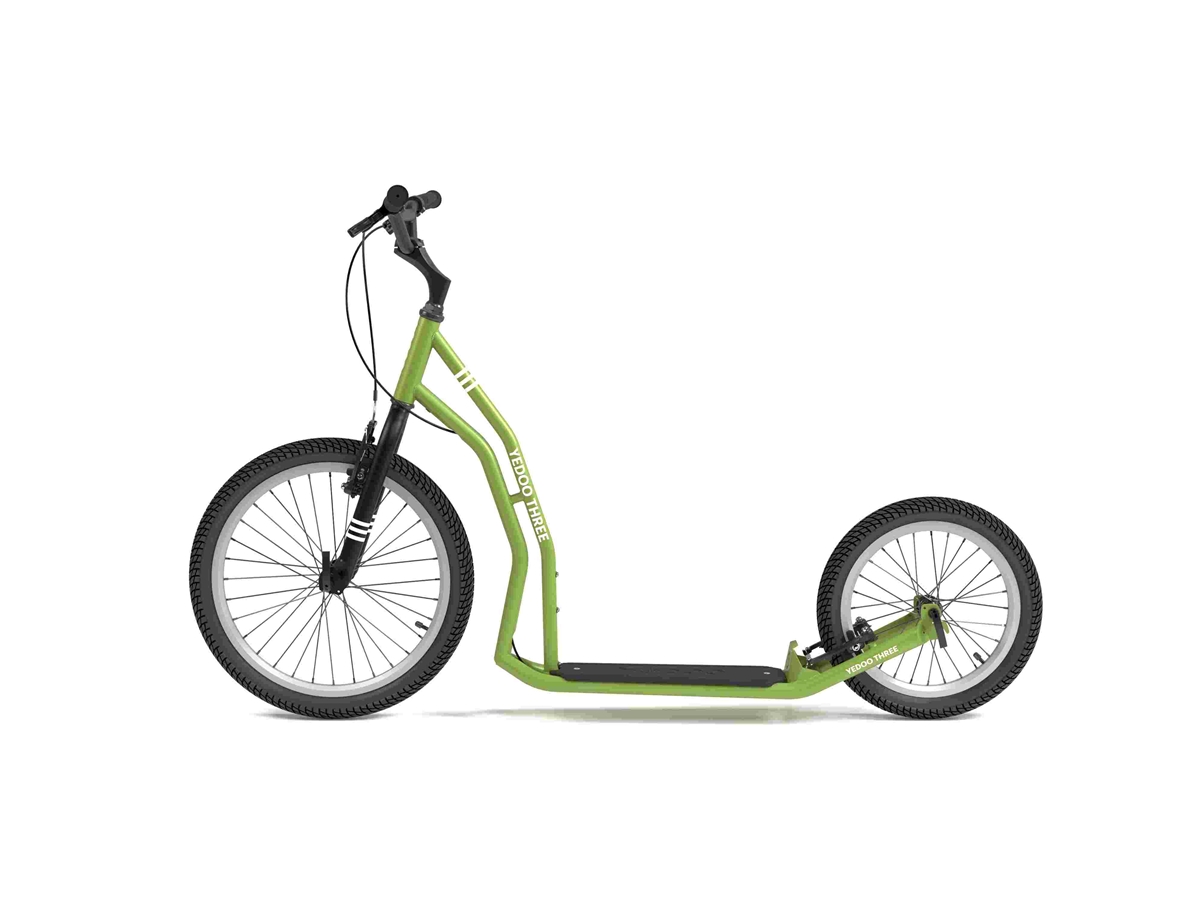

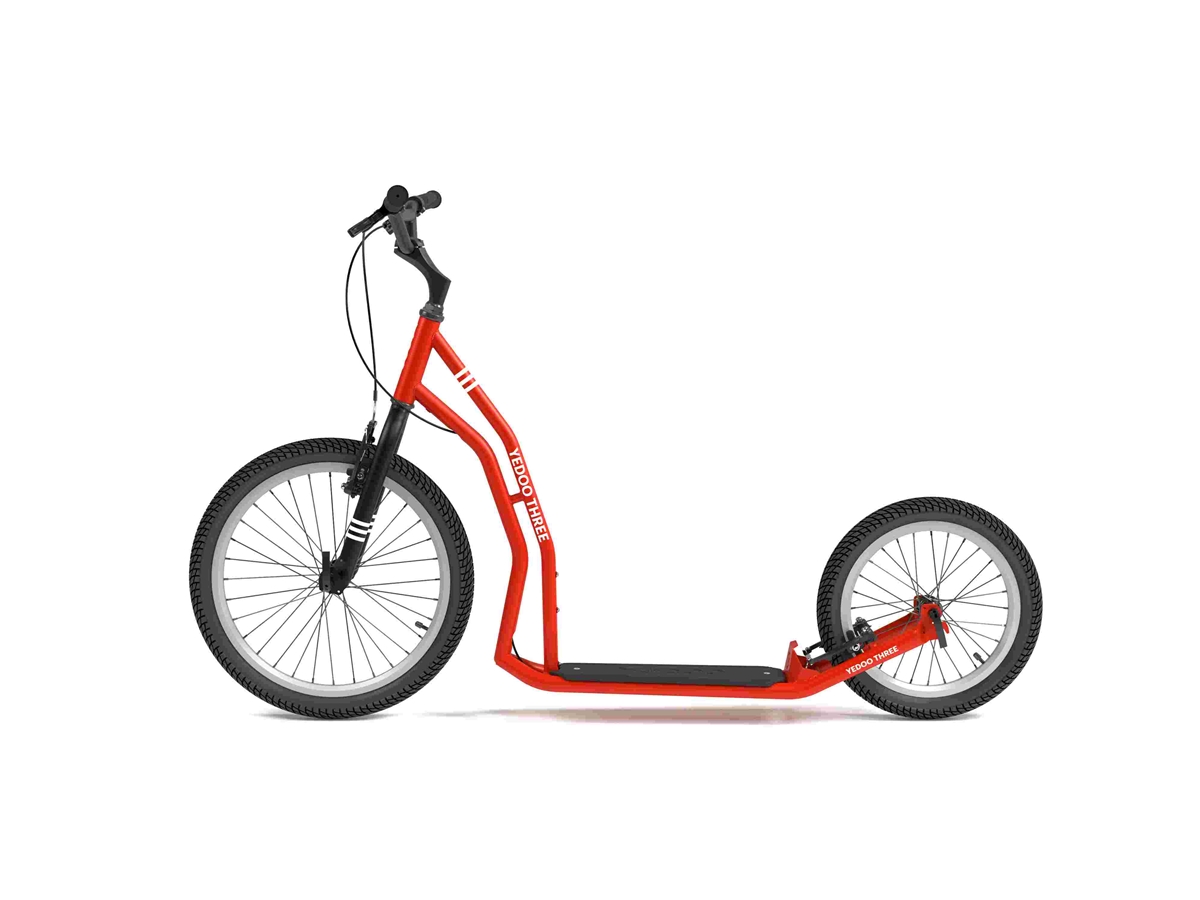

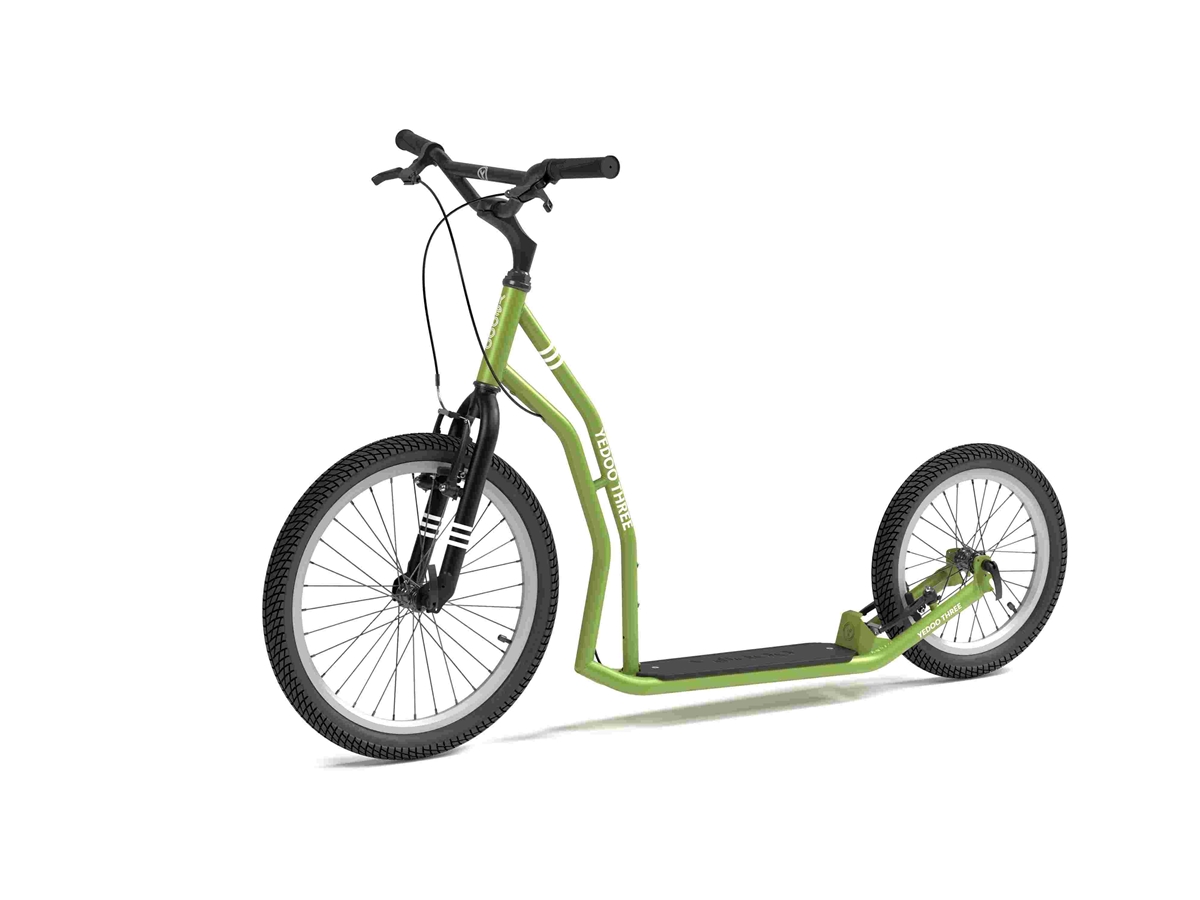

Three Y40
Trojka vám přinese švih, šarm a štíhlost a ještě ušetří. Číslo 3 splňuje klasickou Yedoo trojčlenku plnohodnotné městské koloběžky pro starší děti a dospělé, se solidním vybavením, možnostmi individuálního nastavení a dobrými jízdními vlastnostmi. Takže hurá na rovnice... vlastně na rovince!
Technical data
-
Max. 150 kg
-
Min. 150 cm
-
16"/12"
-
9,9 kg
-
12 +
-
Technical details
-
Product number12207-Y40
-
Weight (with/without kickstand)10,2 / 9,9 kg // 22,5 lb / 21,8 lb
-
Box size110 x 65 x 16 cm
-
Box weight12,6 kg
-
FrameYEDOO Hi-ten steel
-
ForkYEDOO Hi-ten steel
-
StemSteel
-
HandlebarYEDOO Hi-ten ocel
-
GripsXHH rubber
-
Bar endsNot included
-
HeadsetFP steel 1 1/8" threaded
-
Brake levers2x C-STAR alloy
-
Brakes (front/rear)2x "V" C-STAR alloy
-
Wheels20" / 16"
-
Rimsalloy with double wall
-
Hubsalloy
-
Hub width (front/rear)74 / 74 mm
-
Preparation for using flat screws (front/ rear)No/No
-
BearingsConical
-
Quick-release levers (front/rear)Yes/Yes
-
Tyres (front/rear)XINLAN 20x1,75 / 16x1,75
-
Max. inflation (front/rear)4,6 bar / 4,6 bar
-
Preparation for bottle holder1x
-
KickstandNot included
-
Reflective elementsNo
-
Dimensions
-
-
[1] Length145 cm / 57.1 in
-
[2] Footboard40 cm / 15.7 in
-
[3] Handlebar height95 - 101 cm / 37,4 – 39,8 in
-
[4] Width of handlebars64 cm / 25.2 in
-
[5] Ride height (higher/lower position)*4,5 / 6,5 cm // 1.8 / 2.6 in
-
[6] Distance between footboard and ground (higher/lower position)*8 / 10 cm // 3.2 / 3.9 in
-
[7] Room for rider59 cm / 23.2 in
-
*Tolerance +-0.2 cm
-
Documents, standards and certificates
-
Manual
-
NormsČSN EN 14619
ČSN EN 14619
The regulation determines safety and functional requirements for wheel sport equipment particularly scooters aimed for users between 35kg and 100kg. The regulation examines riding properties, strength of construction, safety fixing components, shelf life and correct functionality of individual components such as brakes, bearings, rims, cases, pedals, etc. The regulation also introduces guidelines for preparation of user´s manuals, installation and treatment of these products.
-
We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More
-
Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.
-
Change of technical parameters and components reserved.
-
Warnings and Safety Information:
For riding on roads and for riding in the dark, you must retrofit the scooter with safety features (lights, reflectors, etc.) in accordance with the regulations in force in your country. Follow the rules of the road, the principles of safe driving and wear personal protective equipment (helmet, cycling gloves, knee and elbow protectors, sturdy shoes, etc.). More information can be found in the Yedoo Manual (see download above). -
Manufacturer:
INTREA-PIKO, spol. s.r.o. | Radlická 80 | 150 00 Prague 5 | info@yedoo.cz
