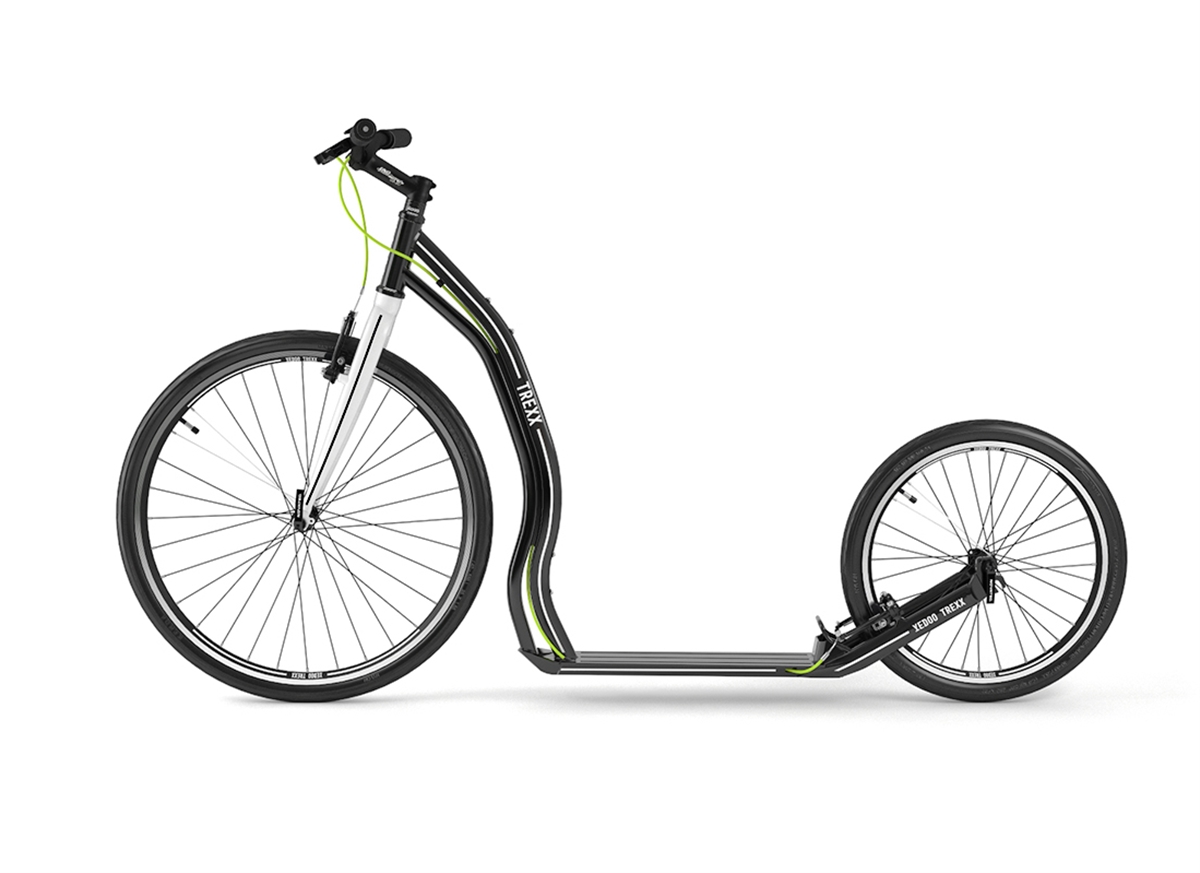

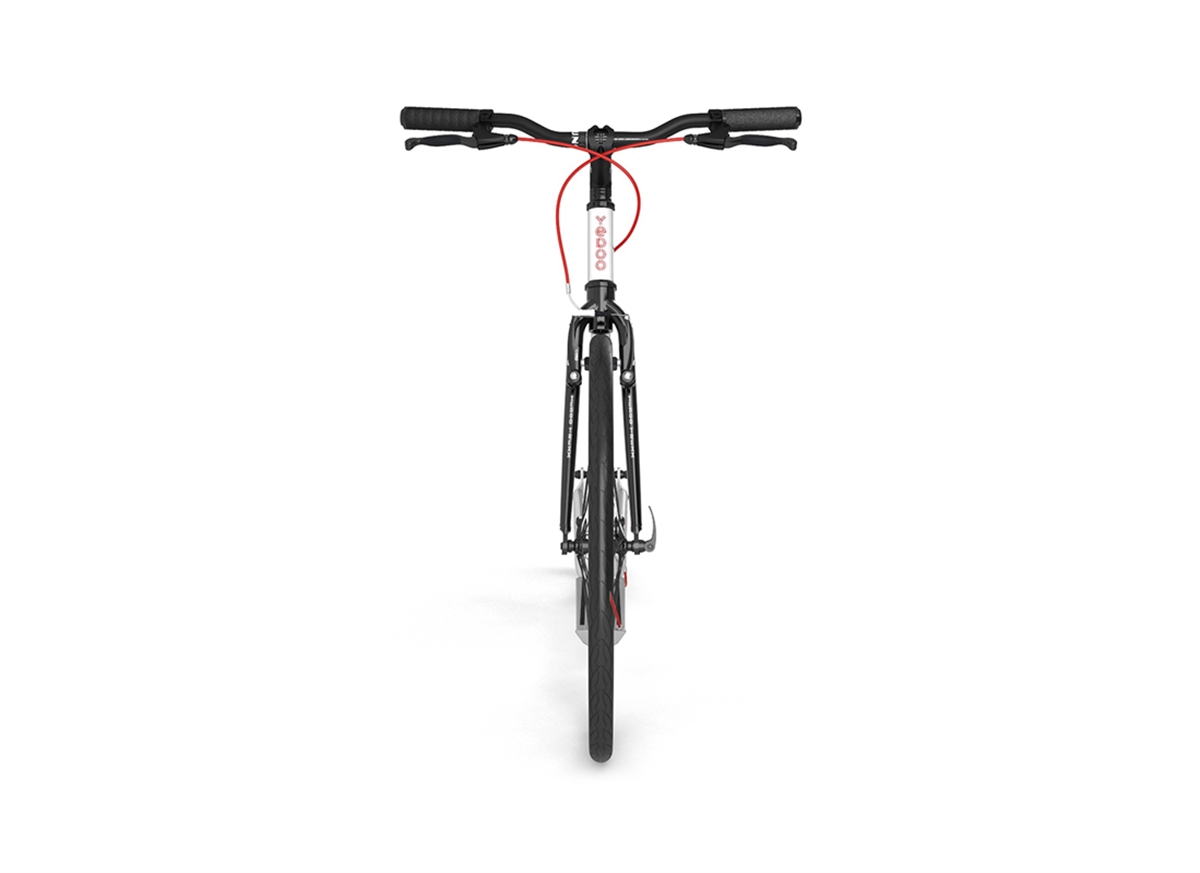

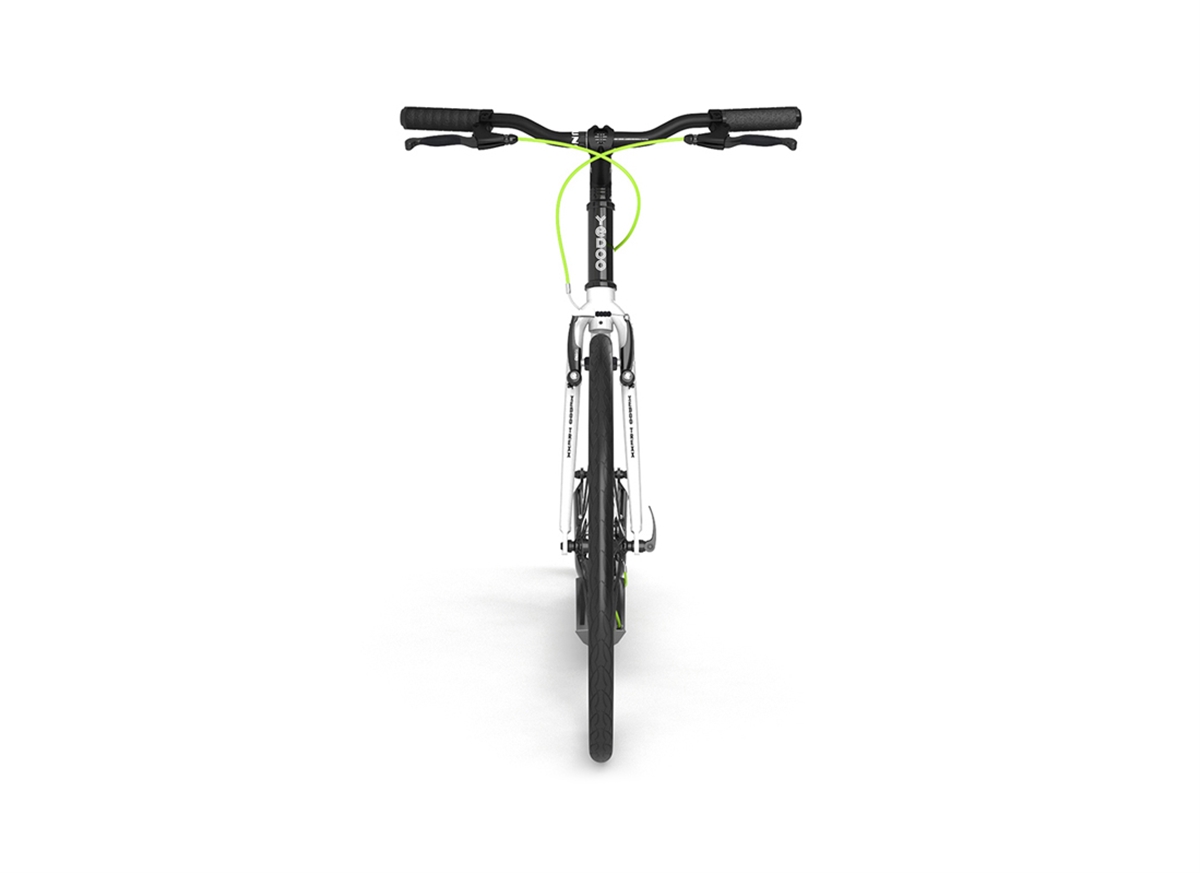

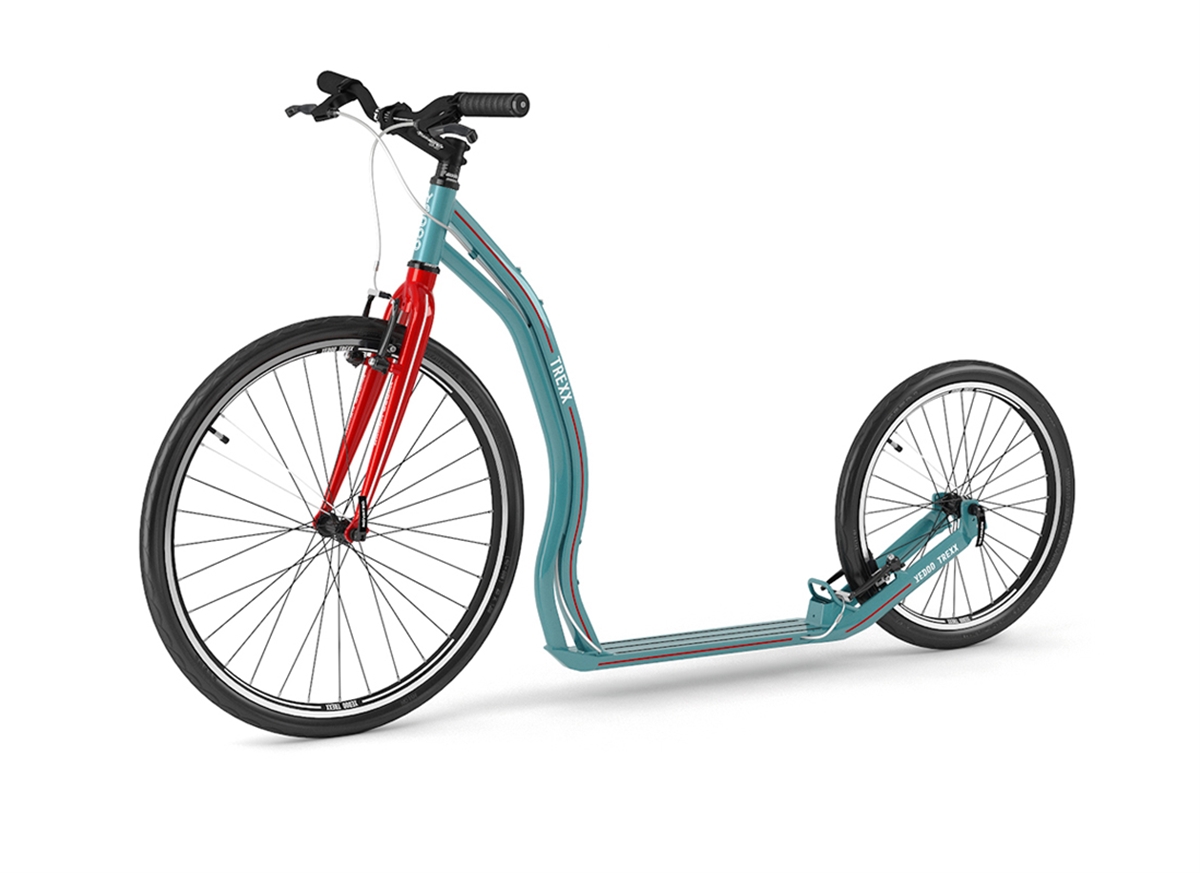

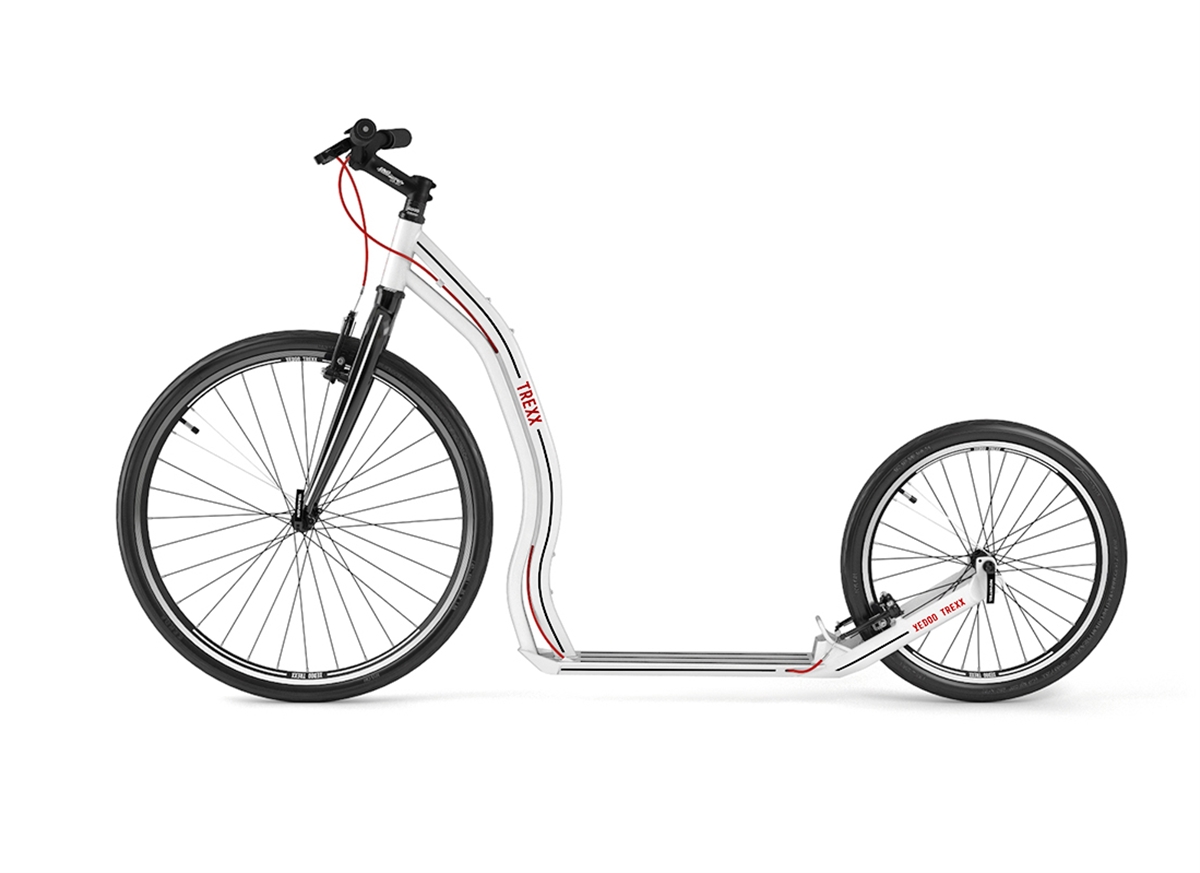

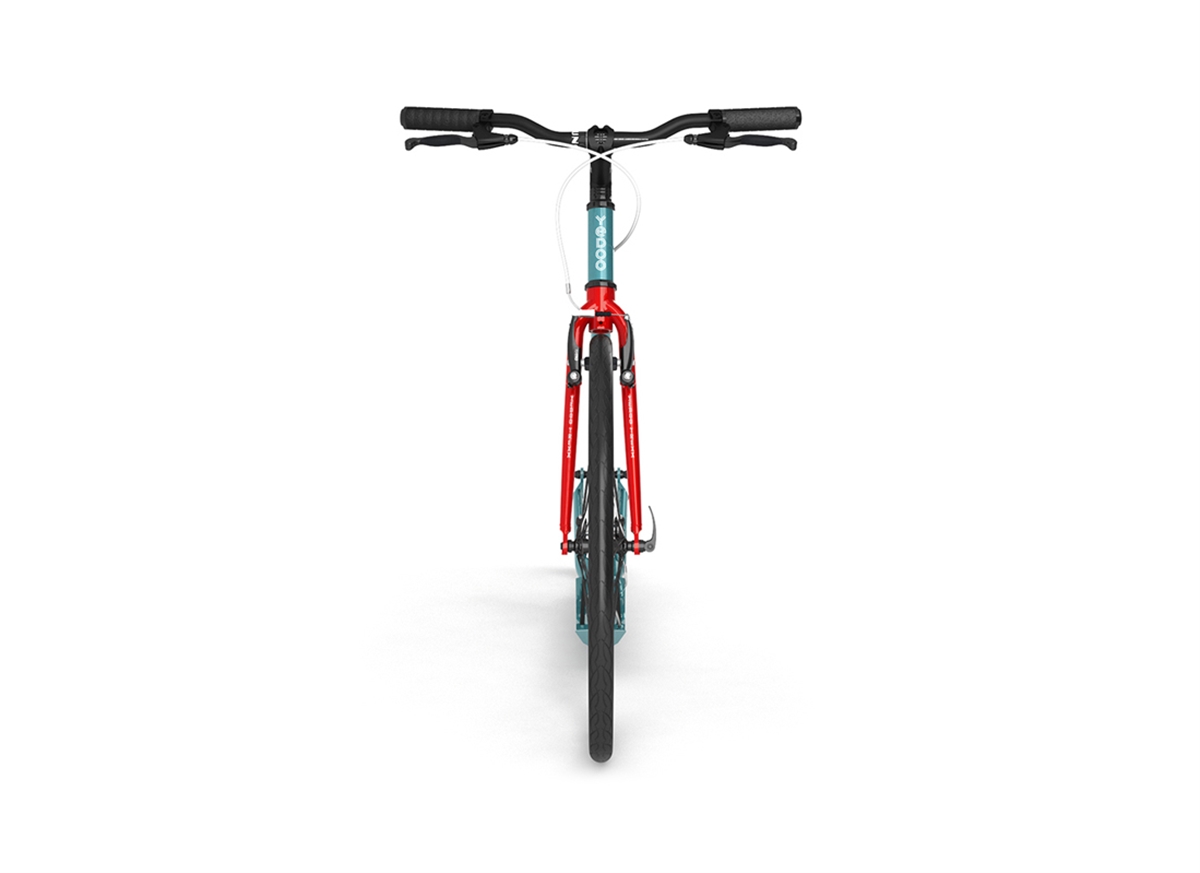

Yedoo Alloy
Trexx
Pick a spot on the map. Asphalt? Gravel? Hairpin turns? Mountains? Forest? Cobblestones? A perfect frame, fast wheels, adjustable footboard height, cutting-edge components. And most of all, a partner who will have your back through whatever adventure – no problem. And plenty of extras... Pack your things. You’ll never come back the same.
Yedoo Alloy
Trexx Disc
Availability:
Yedoo Alloy
Dragstr
Technical data
-
Max. 130 kg
-
Min. 150 cm
-
26"/20"
-
7,8 kg
-
12 +
-
Technical details
-
Product number12702 - Y30
-
Loading limit130 kg / 287 lb
-
Min. height of rider150 cm / 59 in
-
Weight (with/without kickstand)7,8 kg / 17.2 lb
-
Box size119 x 82,5 x 14,5 cm (46.9 x 32.5 x 5.7)
-
Box weight10,5 kg / 23.2 lb
-
FrameYEDOO alloy II.
-
ForkYEDOO alloy II.
-
StemUNO alloy 3D oversize
-
HandlebarUNO alloy DB (riser) oversize
-
GripsXHH foam V3
-
Bar endsOptional
-
HeadsetNECO alloy 1 1/8" semi AHEAD
-
Brake leversTEKTRO ML 520 alloy
-
Brakes (front/rear)102mm "V" TEKTRO alloy / 102mm "V" TEKTRO alloy
-
Wheels26" / 20"
-
RimsHJC alloy double wall + CNC milled braking surface
-
HubsNOVATEC alloy
-
Hub width (front/rear)100 / 74 mm // 3.9 / 2.9 in
-
Preparation for using flat screws (front/ rear)No / Yes
-
BearingsIndustrial
-
Quick-release levers (front/rear)Yes / Yes
-
Tyres (front/rear)KENDA (60TPI, kevlar guard)
-
Max. inflation (front/rear)7 bar / 7 bar
-
Preparation for bottle holder2x
-
KickstandOptional
-
Reflective elementsOn the front fork
-
Dimensions
-
-
[1] Length171 cm / 67.3 in
-
[2] Footboard40 cm / 15.7 in
-
[3] Handlebar height92 - 98 cm / 36.2 - 38.6 in
-
[4] Width of handlebars64 cm / 25.2 in
-
[5] Ride height (higher/lower position)*4,0 / 6,0 cm // 1.6 / 2.4 in
-
[6] Distance between footboard and ground (higher/lower position)*6,7 / 8,7 cm // 2.6 / 3.4 in
-
[7] Room for rider68 cm / 26.8 in
-
*Tolerance +-0.2 cm
-
Documents, standards and certificates
-
Manual
-
NormsČSN EN 14619
ČSN EN 14619
The regulation determines safety and functional requirements for wheel sport equipment particularly scooters aimed for users between 35kg and 100kg. The regulation examines riding properties, strength of construction, safety fixing components, shelf life and correct functionality of individual components such as brakes, bearings, rims, cases, pedals, etc. The regulation also introduces guidelines for preparation of user´s manuals, installation and treatment of these products.
-
Testing authoritySZÚ, s. p.
-
-
We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More
-
Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.
-
Change of technical parameters and components reserved.
Manual_Yedoo_ALLOY_WT_web.pdf
Technical and construction features
Originally designed light alloy frame
Extruded aluminium profiles resist lateral and vertical load easily. Thanks to them, the scooters are not only light, but also firm and have optimum solidity.
Adjustable oversize handlebars
Ergonomic grips and Tektro brake levers
Slightly raised footboard
Footboard with anti-slip tapes
Tektro Alloy brakes and alloy double wall rims
